Berlin 1965
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| 3001, 1.1960- Berlin | 227/245 | 27 | Peenewerft, Wolgast | 16.8.1957 | stricken 10.1979 | ||
| 3002, 1.1960- Halle | 220/221 | 28 | Peenewerft, Wolgast | 21.9.1957 | stricken 10.1972 | ||
| 3003, 1.1960- Dresden | 221/225 | 29 | Peenewerft, Wolgast | 9.11.1957 | stricken 10.1973 | ||
| 3004, 1.1960- Rostock | 223 | 30 | Peenewerft, Wolgast | 28.11.1957 | stricken 10.1973 | ||
| 3005, 1.1960- Gera | 224/242 | 31 | Peenewerft, Wolgast | 20.12.1957 | stricken 10.1972 | ||
| 3006, 1.1960- Magdeburg | 229/223 | 32 | Peenewerft, Wolgast | 6.3.1958 | stricken 10.1972 | ||
| 3007, 1.1960- Erfurt | 228/243 | 33 | Peenewerft, Wolgast | 28.3.1958 | stricken 10.1972 | ||
| 3008, 1.1960- Karl-Marx-Stadt | 225/224 | 34 | Peenewerft, Wolgast | 4.5.1958 | stricken 10.1976 | ||
| 3009, 1.1960- Potsdam | 222 | 35 | Peenewerft, Wolgast | 8.7.1958 | stricken 10.1973 | ||
| 3010, 1.1960- Leipzig | 226/222 | 36 | Peenewerft, Wolgast | 31.10.1958 | stricken 10.1976 |
|
Displacement standard, t |
553 |
|
Displacement full, t |
741 |
|
Length, m |
66.1 |
|
Breadth, m |
8.40 |
|
Draught, m |
2.52 |
|
No of shafts |
2 |
|
Machinery |
2 6KVD43A diesels |
|
Power, h. p. |
2400 |
|
Max speed, kts |
16.5 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
2465(12) |
|
Armament |
1 x 1 - 85/52 90K, 5 x 2 - 25/80 2M-3M, 2 DCR, MKT-1 mechanical, TEM-2 magnetic, AT-2 acoustic minesweeping gear, mine-clearing line charges, 30 mines |
|
Sensors |
KSIB radar, Tamir-11 sonar |
|
Complement |
38 |
Project history: Development of 'Habicht' class, work beginning in 1955 at Peenewerft, Wolgast. Project 'Krake'.
Modernizations: 1963-1965, all: - KSIB radar; + KSA-5, Zarnitsa radars
Naval service: No significant events.

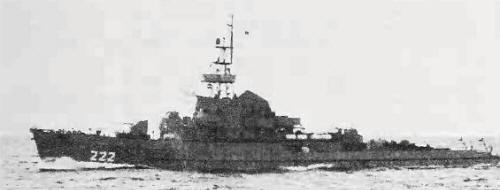

Leipzig 1970
Many thanks to Wolfgang Stöhr for additional information on this page.
