VOLKSMARINE (GERMAN DEMOCRATIC REPUBLIC)

COASTAL FORCES

MAX REICHPIETSCH fast attack craft (missile) (1962-1971)

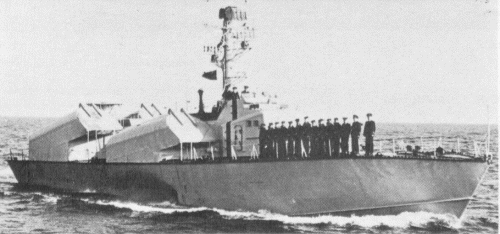

Max Reichpietsch 1965

Name No Yard No Builder Laid down Launched Comm Fate
Max Reichpietsch 701/751, later 711   Primorskiy Yd, Leningrad, USSR     11/1962 deleted 10.1990
Albin Köbis 702, later 712   Primorskiy Yd, Leningrad, USSR     11/1962 stricken 9.1981
Josef Schares 712/752   Primorskiy Yd, Leningrad, USSR     1/1964 deleted 10.1990
Rudolf Eglhofer 713/753   Primorskiy Yd, Leningrad, USSR     1/1964 stricken 11.1981
Richard Sorge 714/713   Primorskiy Yd, Leningrad, USSR     1/1964 deleted 10.1990
August Lüttgens 713, later 731/732   Primorskiy Yd, Leningrad, USSR     9/1964 deleted 10.1990
Paul Eisenschneider 714, later 732/713   Primorskiy Yd, Leningrad, USSR     10/1964 stricken 11.1981
Karl Meseberg 733/733   Primorskiy Yd, Leningrad, USSR     10/1964 deleted 10.1990
Walter Krämer 734/712   Primorskiy Yd, Leningrad, USSR     12/1964 deleted 10.1990
Paul Schulze 751/753   Primorskiy Yd, Leningrad, USSR     12/1964 deleted 10.1990
Paul Wieczorek 752/754   Primorskiy Yd, Leningrad, USSR     9/1965 deleted 10.1990
Fritz Gast 753/714   Primorskiy Yd, Leningrad, USSR     11/1965 deleted 10.1990
Albert Gast 754/734   Primorskiy Yd, Leningrad, USSR     12/1965 deleted 10.1990
Heinrich Dorrenbach 732/711   Primorskiy Yd, Leningrad, USSR     9/1971 deleted 10.1990
Otto Tost 714/731   Primorskiy Yd, Leningrad, USSR     9/1971 deleted 10.1990
Josef Schares 712/753   Primorskiy Yd, Leningrad, USSR     10/1971 deleted 10.1990



Displacement standard, t

184

Displacement full, t

226

Length, m

38.6

Breadth, m

7.60

Draught, m

1.84

No of shafts

3

Machinery

3 M-504B diesels

Power, h. p.

15000

Max speed, kts

42

Fuel, t

diesel oil

Endurance, nm(kts)

1800(14)

Armament

4 x 1 P-15/P-15T SSM (4 P-15/P-15T), 2 x 2 - 30/71 AK-230

Sensors

MR-101 Rangout, MR-104 Rys' radars

Complement

28

Project history: Former Soviet Project 205 FAC (missile).

Modernizations: 1987-1990, all: + 2x PK-16 decoy RL

Naval service: No significant events.

1965
