68.212 1970
|
Names |
68.1 68.2 68.201-68.226 81.1 |
|
Builders |
Yachtwerft, Berlin: 68.1, 68.2, 68.201-68.226, 81.1 |
|
Commissioned |
1959: 68.1 1960: 68.2 1964: 68.202, 68.203, 68.208, 68.209 1966: 68.201, 68.206, 68.207 1967: 68.213, 68.216, 68.218-68.222, 68.225, 68.226 1968: 68.205, 68.210-68.212, 68.214, 68.215, 68.223, 68.224, 81.1 |
|
Losses |
never completed: 68.204, 68.217 68.225 (5.6.1968, collision) |
|
Transfers |
none |
|
Discarding |
1963: 68.1, 68.2 1967: 68.201, 68.203, 68.209 1968: 68.202, 68.206-68.208, 81.1 1970: 68.213 1972: 68.219 1973: 68.218, 68.221, 68.222, 68.224 1974: 68.215, 68.220, 68.226 1975: 68.205, 68.210-68.212, 68.214, 68.216, 68.223 |
| Data variant | all except 68.1, 81.1 |
|
Displacement standard, t |
16 |
|
Displacement full, t |
19 |
|
Length, m |
17.1 |
|
Breadth, m |
3.59 |
|
Draught, m |
0.90 |
|
No of shafts |
2 |
|
Machinery |
2 M-50F4 diesels |
|
Power, h. p. |
2400 |
|
Max speed, kts |
50 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
200(48) |
|
Armament |
68.2: 1 x 1 - 12.7/79, 3 - 533 TT or 6 mines or landing party others: 3 - 533 TT or 6 mines |
|
Sensors |
KSA-3 radar |
|
Complement |
3 |
| Data variant | 68.1 |
|
Displacement standard, t |
13 |
|
Displacement full, t |
15 |
|
Length, m |
13.0 |
|
Breadth, m |
3.59 |
|
Draught, m |
0.90 |
|
No of shafts |
1 |
|
Machinery |
1 M-50F3 diesel |
|
Power, h. p. |
1200 |
|
Max speed, kts |
35 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
200(48) |
|
Armament |
3 - 533 TT or 6 mines |
|
Sensors |
KSA-3 radar |
|
Complement |
3 |
| Data variant | 81.1 |
|
Displacement standard, t |
16 |
|
Displacement full, t |
19 |
|
Length, m |
17.1 |
|
Breadth, m |
3.59 |
|
Draught, m |
0.90 |
|
No of shafts |
2 |
|
Machinery |
1 M-50F3 diesel |
|
Power, h. p. |
1200 |
|
Max speed, kts |
40 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
200(48) |
|
Armament |
2 - 533 TT |
|
Sensors |
KSA-3 radar |
|
Complement |
3 |
Project history: This 'Hydra' design was prepared by Yachtwerft, Berlin, under the designation 'Project 68', competing with the 'litis' class; they were larger and slower, but more powerfully armed and more suited to general purpose use. The wooden hull backed by aluminium alloy frames was stepped aft to accommodate three single stern-fired tail-first TTs which could be removed to carry mines or accommodate landing parties. 81.1 was experimental hydrofoil launch.
Modernizations: None.
Naval service: No significant events.

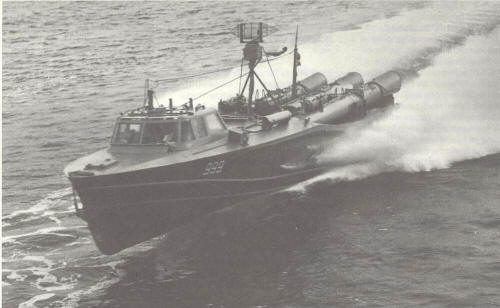

68.200 series as FAC (torpedo)

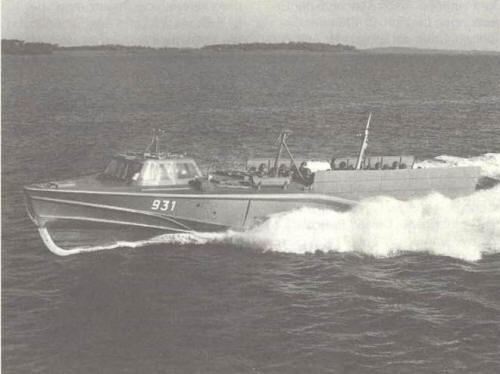

68.200 series as assault craft

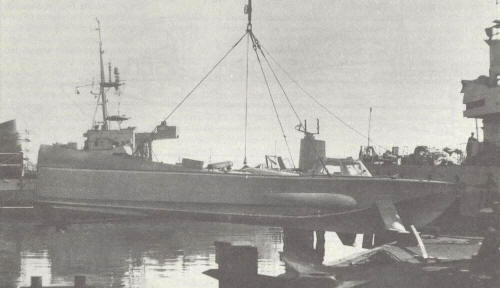

81.1
