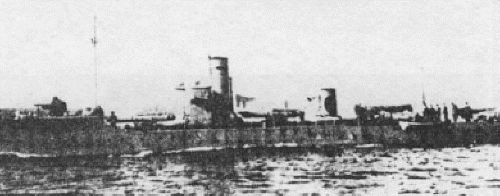

Zick 1940
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Zick (ex-Trygg) | V5501, 9.1943- V5506 | 109 | Marinens Hovedverft, Horten, Norway | 1917 | 31.5.1919 | 1920 // 8.1940 | sunk 23.10.1944 |
| Zack (ex-Snøgg) | 5.1942- V5504, 5.1942- V5502 | 110 | Marinens Hovedverft, Horten, Norway | 1917 | 2.9.1920 | 1921 // 5.1940 | wrecked 1.9.1943 |
|
Displacement normal, t |
220 |
|
Displacement full, t |
256 |
|
Length, m |
53.0 |
|
Breadth, m |
5.50 |
|
Draught, m |
2.00 |
|
No of shafts |
2 |
|
Machinery |
2 VTE, 2 boilers |
|
Power, h. p. |
3600 |
|
Max speed, kts |
17 |
|
Fuel, t |
oil 30 |
| Endurance, nm(kts) | |
|
Armament |
1 x 1 - 76/28 Bofors, 1 x 1 - 20/65 C/38, 2 x 2 - 450 TT, 2 DCT (8 - 10) |
|
Complement |
37 |
Project history: ex-Norwegian torpedo boats captured 25.4.1940 at Isfjorden and 4.5.1940 at Florø accordingly.
Modernizations: 1941 - 1942, both: - 1 x 2 - 450 TT; + 1 x 1 - 20/65 C/38
Naval service: Zick was sunk by Allied bombers 23.10.1944 in Hjeltefjord and Zack ran aground off Bergen 1.9.1943.
Stegg
