KRIEGSMARINE (GERMANY)

TORPEDO SHIPS

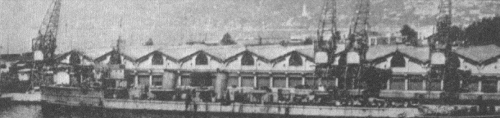

TA20 torpedo boat (1917/1943)

Audace 1940

Name No Yard No Builder Laid down Launched Comp Fate
TA20 (ex-Audace)   1349 Yarrow, Scotstoun, UK 10/1913 27.9.1916 3/1917 // 10.1943 sunk 1.11.1944



Displacement standard, t

890

Displacement full, t

1152

Length, m

83.9 wl 87.6 oa

Breadth, m

8.38

Draught, m

2.50

No of shafts

2

Machinery

2 Brown-Curtis steam turbines, 4 Yarrow boilers

Power, h. p.

22000

Max speed, kts

27

Fuel, t

oil 248

Endurance, nm(kts) 2180(15)

Armament

2 x 1 - 102/35 M1914-15, 10 x 2 - 20/65 M1939, 20 mines

Complement

127

Project history: Laid down for the IJN as Kawakaze, during completion in 1916 transferred to Italy as Audace. In 1938 destroyer was converted to a command and control ship of the radio-controlled target ship San Marco (TTs were removed), but continued to be rated as torpedo boat. 12.9.1943 Audace was captured by German troops in Venice and commissioned by Germans 21.10.1943 as TA20.

Modernizations: late 1943: - 10 x 2 - 20/65; + 1 x 2 - 37/54 M1938, 1 x 4 - 20/65 C/38, 6 x 1 - 20/65 C/38

Naval service: TA20 served on Adriatic. 1.11.1944 she was sunk by British escort destroyers Avon Vale and Wheatland at Pago Island.

TA20
