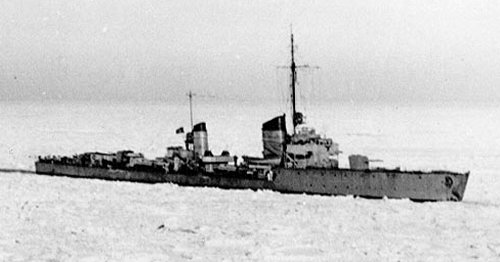

Jaguar 1941
Jaguar 1941
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Wolf | WO, WL | 109 | MW Wilhelmshaven | 3/1927 | 12.10.1927 | 11/1928 | sunk 8.1.1941 |
| Iltis | IT | 110 | MW Wilhelmshaven | 3/1927 | 12.10.1927 | 10/1928 | sunk 13.5.1942 |
| Luchs | LU | 111 | MW Wilhelmshaven | 4/1927 | 15.3.1928 | 4/1929 | sunk 26.7.1940 |
| Tiger | TG | 112 | MW Wilhelmshaven | 4/1927 | 15.3.1928 | 1/1929 | collision 27.8.1939 |
| Jaguar | JA, JR | 113 | MW Wilhelmshaven | 4/1927 | 15.3.1928 | 6/1929 | sunk 15.6.1944 |
| Leopard | LP | 114 | MW Wilhelmshaven | 5/1927 | 15.3.1928 | 8/1929 | collision 30.4.1940 |
|
Displacement standard, t |
933 |
|
Displacement full, t |
1320 |
|
Length, m |
89.0 wl 92.6 oa |
|
Breadth, m |
8.60 |
|
Draught, m |
2.83 normal 3.52 max |
|
No of shafts |
2 |
|
Machinery |
Wolf, Leopard: 2 sets Brown-Boveri geared steam turbines, 3 Marine boilers Iltis, Tiger: 2 sets Vulcan geared steam turbines, 3 Marine boilers Jaguar, Luchs: 2 sets Schichau geared steam turbines, 3 Marine boilers |
|
Power, h. p. |
23000 |
|
Max speed, kts |
34 |
|
Fuel, t |
oil 338 |
| Endurance, nm(kts) | 3900(17) |
|
Armament |
3 x 1 - 105/52 SK C/28, 2 x 3 - 500 TT, 30 mines |
|
Complement |
120 |
Project history: Improved version of type 1923. Differed in a little bigger dimensions and increased steam output of boilers. Wolf and Leopard were equipped with Brown-Boveri turbines, Iltis and Tiger by Vulkan, Jaguar and Luchs by Schichau. It was supposed to arm these torpedo boats with 127mm guns, but under pressure of Great Britain 105mm/55 guns of new model have been fitted.
Modernizations: 1931, all: - 2 x 3 - 500 TT; + 2 x 3 - 533 TT
1932, Leopard, Luchs: - 3 x 1 - 105/52; + 3 x 1 - 128/42 SK C/34
1934, Leopard, Luchs: - 3 x 1 - 128/42; + 3 x 1 - 105/52 SK C/28
1935 - 1937, all: + 2 x 1 - 20/65 C/30
1938 - 1939, Wolf, Iltis, Tiger: - 3 x 1 - 105/52; + 3 x 1 - 105/42 SK C/32
1939, all: + 2 DCT (8 - 12)
1940, Wolf, Jaguar: - 2 x 1 - 20/65 C/30; + 4 x 1 - 20/65 C/38
1940, Iltis: + 2 x 1 - 37/80 SK C/30
1942, Jaguar: + 1 x 4 - 20/65 C/38
1944, presumably Jaguar: + 2x FuMO 63 radars, FuMB 4 Sumatra ECM suite
Naval service: In 1936-1938 all boats actively acted at coast of Spain. Tiger was lost 27.8.1939 as a result of collision with destroyer Max Schultz at Bornholm. Leopard was lost 30.4.1940 as result of collision with minelayer Preussen in Skagerrack. Luchs was sunk 26.7.1940 by British submarine Thames off Stavanger. Wolf was lost 8.1.1941 on a mine, laid by British patrol launch in La Manche. Iltis was sunk 13.5.1942 by British MTB221 in La Manche. Jaguar was lost 15.6.1944 during raid of British aircraft to Le Havre.
Wolf 1940
