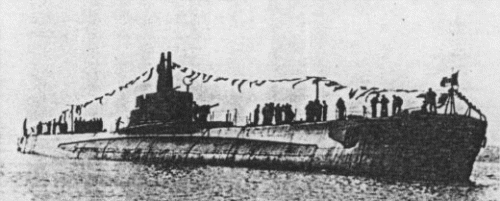

UIT22 1943
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| UIT22 (ex-Alpino Bagnolini) | Tosi, Taranto, Italy | 12.1938 | 28.10.1939 | 12/1939 // 10.1943 | sunk 11.3.1944 | ||
| UIT23 (ex-Reginaldo Giuliani) | Tosi, Taranto, Italy | 3.1938 | 13.3.1939 | 2.1940 // 10.1943 | sunk 14.2.1944 |
|
Displacement standard, t |
1015 |
|
Displacement normal, t |
1148 / 1460 |
|
Length, m |
76.1 |
|
Breadth, m |
6.98 |
|
Draught, m |
4.55 |
|
No of shafts |
2 |
|
Machinery |
2 Tosi diesels / 2 Ansaldo electric motors |
|
Power, h. p. |
3500 / 1400 |
|
Max speed, kts |
17.7 / 8.5 |
|
Fuel, t |
diesel oil 135 |
| Endurance, nm(kts) | 13000(8) / 108(4) |
|
Armament |
1 x 1 - 100/47 M1938, 2 x 2 - 13.2/76, 8 - 533 TT (4 bow, 4 stern, 12) |
| Electronic equipment | sonar, hydrophone |
|
Complement |
58 |
| Diving depth operational, m | 90 |
Project history: UIT22 was former Italian submarine Alpino Bagnolini, 9.9.1943 captured at Bordeaux after capitulation of Italy and 14.10.1943 entered German service. UIT23 was former Italian submarine Reginaldo Giuliani, 10.9.1943 captured by Japanese at Singapore and 22.10.1943 transferred to Kriegsmarine.
Modernizations: 1943, both: artillery consisted of 1 x 2 - 20/65 C/38; + FuMO 30 radar, FuMB 3 Bali, FuMB 6 Palau ECM suites
Naval service: UIT22 was sunk 11.3.1944 by Catalina of 262nd AF sqn S off Capetown. UIT23 was torpedoed 15.2.1944 by British submarine Tally Ho in Malacca Strait.
Capitano Tarantini 1940
