UF2 1942
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| UF1 (ex-L'Africaine) | A C de la Seine-Maritime, Le Trait, France | 12.1937 | 7.12.1946 | 10.1949 // --- | incomplete to France 1945 (L'Africaine) | ||
| UF2 (ex-La Favorite) | A C de la Seine-Maritime, Le Trait, France | 12/1937 | 9.1938 | 11.1942 | stricken 7.1944 | ||
| UF3 (ex-L'Astrée) | A C Dubigeon, Nantes, France | 12.1938 | 3.5.1946 | 4.1949 // --- | incomplete to France 1945 (L'Astrée) |
|
Displacement standard, t |
|
|
Displacement normal, t |
893 / 1170 |
|
Length, m |
71.8 pp 73.5 oa |
|
Breadth, m |
6.50 |
|
Draught, m |
4.20 |
|
No of shafts |
2 |
|
Machinery |
2 Sulzer or Schneider diesels / 2 Schneider-Westinghouse electric motors |
|
Power, h. p. |
3000 / 1400 |
|
Max speed, kts |
14.5 / 9.3 |
|
Fuel, t |
diesel oil 101 |
| Endurance, nm(kts) | 2250(15) / 80(5) |
|
Armament |
1 x 1 - 88/42 SK C/35, 1 x 1 - 20/65 C/38, 6 - 550 TT (4 bow, 2 stern, 8) |
| Electronic equipment | FuMO 30 radar, GHG hydrophone, FuMB 1 Metox ECM suite |
| Complement |
44 |
| Diving depth operational, m | 100 |
Project history: Former French submarines of Aurore class, captured incomplete 13.6.1940 by German troops; completion under German standards of UF2 begun 31.10.1940. Exact data of conversion is not known: most likely, trainable TT was not installed, and German origin gun was installed. 5.5.1941 she was renamed UF2 and commissioned by Kriegsmarine 5.11.1942. Sister-ships L`Africaine and L`Astree received German numbers UF1 and UF3, but never commissioned and completed after war for French Navy.
Modernizations: 1943-1944, presumably: - FuMB 1 Metox ECM suite; + FuMB 3 Bali, FuMB 6 Palau ECM suites
Naval service: UF2 was stricken 5.7.1944 and in 1945, presumably, scuttled at Gotenhafen.

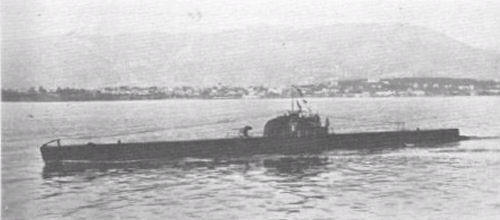

sister-ship L'Aurore
