U2 1910
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| U2 | 1 | KW Danzig | 1906 | 18.6.1908 | 7.1908 | discarded 2.1919 |
|
Displacement standard, t |
|
|
Displacement normal, t |
341 / 430 |
|
Length, m |
45.4 |
|
Breadth, m |
5.50 |
|
Draught, m |
3.05 |
|
No of shafts |
2 |
|
Machinery |
2 Daimler petrol engines / 2 SSW electric motors |
|
Power, h. p. |
600 / 630 |
|
Max speed, kts |
13.2 / 9.0 |
|
Fuel, t |
petrol 46 |
| Endurance, nm(kts) | 1600(13) / 50(5) |
|
Armament |
4 - 450 TT (2 bow, 2 stern, 6) |
|
Complement |
22 |
| Diving depth operational, m | 30 |
Project history: Project 7, built by Navy yard. Double-hulled.
Modernizations: None.
Naval service: Used for trials and training, BU in 1920.

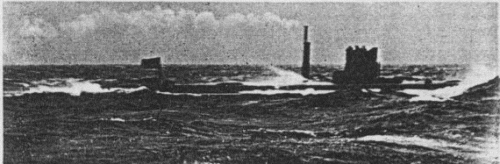

U2 1908
