"IXC/40" type oceangoing submarines (1942-1944)

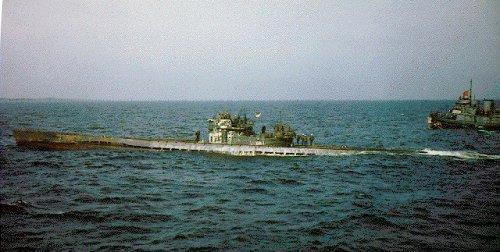

U170 1944

Name No Yard No Builder Laid down Launched Comp Fate
U167   706 Deschimag, Seebeck 4.1941 5.3.1942 7.1942 sunk 6.4.1943
U168   707 Deschimag, Seebeck 3.1941 5.3.1942 9.1942 sunk 6.10.1944
U169   708 Deschimag, Seebeck 5.1941 6.6.1942 11.1942 sunk 27.3.1943
U170   709 Deschimag, Seebeck 5.1941 6.6.1942 1.1943 surrendered 5.1945, scuttled  30.11.1945
U183   1023 Deschimag, Bremen 5.1941 9.1.1942 4.1942 sunk 23.4.1945
U184   1024 Deschimag, Bremen 6.1941 21.2.1942 5.1942 sunk 20.11.1942
U185   1025 Deschimag, Bremen 7.1941 2.3.1942 6.1942 sunk 24.8.1943
U186   1026 Deschimag, Bremen 7.1941 11.3.1942 7.1942 sunk 12.5.1943
U187   1027 Deschimag, Bremen 8.1941 16.3.1942 7.1942 sunk 4.2.1943
U188   1028 Deschimag, Bremen 8.1941 31.3.1942 8.1942 scuttled  25.8.1944
U189   1035 Deschimag, Bremen 9.1941 1.5.1942 8.1942 sunk 23.4.1945
U190   1036 Deschimag, Bremen 10.1941 8.6.1942 9.1942 surrendered 14.5.1945, to Canada, sunk as target 21.10.1947
U191   1037 Deschimag, Bremen 11.1941 3.7.1942 10.1942 sunk 23.4.1943
U192   1038 Deschimag, Bremen 11.1941 31.7.1942 11.1942 sunk 6.5.1943
U193   1039 Deschimag, Bremen 12.1941 24.8.1942 12.1942 sunk 28.4.1944
U194   1040 Deschimag, Bremen 1.1942 22.9.1942 1.1943 sunk 24.6.1943
U525   340 Deutsche Werft, Hamburg 9.1941 20.5.1942 7.1942 sunk 11.8.1943
U526   341 Deutsche Werft, Hamburg 10.1941 3.6.1942 8.1942 sunk 14.4.1943
U527   342 Deutsche Werft, Hamburg 10.1941 3.6.1942 9.1942 sunk 23.7.1943
U528   343 Deutsche Werft, Hamburg 11.1941 1.7.1942 9.1942 sunk 11.5.1943
U529   344 Deutsche Werft, Hamburg 11.1941 15.7.1942 9.1942 sunk 15.2.1943
U530   345 Deutsche Werft, Hamburg 12.1941 28.7.1942 10.1942 surrendered 10.7.1945, to USA, sunk as target 20.11.1947
U531   346 Deutsche Werft, Hamburg 12.1941 12.8.1942 10.1942 sunk 6.5.1943
U532   347 Deutsche Werft, Hamburg 1.1942 26.8.1942 11.1942 surrendered 10.5.1945, scuttled  9.12.1945
U533   351 Deutsche Werft, Hamburg 2.1942 11.9.1942 11.1942 sunk 16.10.1943
U534   352 Deutsche Werft, Hamburg 2.1942 23.9.1942 12.1942 sunk 5.5.1945
U535   353 Deutsche Werft, Hamburg 3.1942 8.10.1942 12.1942 sunk 5.7.1943
U536   354 Deutsche Werft, Hamburg 3.1942 21.10.1942 1.1943 sunk 20.11.1943
U537   355 Deutsche Werft, Hamburg 4.1942 7.11.1942 1.1943 sunk 10.11.1944
U538   356 Deutsche Werft, Hamburg 4.1942 20.11.1942 2.1943 sunk 21.11.1943
U539   360 Deutsche Werft, Hamburg 5.1942 4.12.1942 2.1943 surrendered 5.1945, scuttled  4.12.1945
U540   361 Deutsche Werft, Hamburg 5.1942 18.12.1942 3.1943 sunk 17.10.1943
U541   362 Deutsche Werft, Hamburg 6.1942 5.1.1943 3.1943 surrendered 14.5.1945, scuttled  5.1.1946
U542   363 Deutsche Werft, Hamburg 6.1942 19.1.1943 4.1943 sunk 26.11.1943
U543   364 Deutsche Werft, Hamburg 7.1942 3.2.1943 4.1943 sunk 2.7.1944
U544   365 Deutsche Werft, Hamburg 7.1942 17.2.1943 5.1943 sunk 16.1.1944
U545   366 Deutsche Werft, Hamburg 8.1942 3.3.1943 5.1943 sunk 11.2.1944
U546   367 Deutsche Werft, Hamburg 8.1942 17.3.1943 6.1943 sunk 24.4.1945
U547   368 Deutsche Werft, Hamburg 8.1942 3.4.1943 6.1943 damaged 11.8.1944, never repaired
U548   369 Deutsche Werft, Hamburg 9.1942 14.4.1943 6.1943 sunk 19.4.1945
U549   370 Deutsche Werft, Hamburg 9.1942 28.4.1943 7.1943 sunk 29.5.1944
U550   371 Deutsche Werft, Hamburg 10.1942 12.5.1943 7.1943 sunk 16.4.1944
U801   710 Deschimag, Seebeck 9.1941 31.10.1942 3.1943 sunk 17.3.1944
U802   711 Deschimag, Seebeck 12.1941 31.10.1942 6.1943 surrendered 11.5.1945, scuttled  31.12.1945
U803   712 Deschimag, Seebeck 6.1942 1.4.1943 9.1943 sunk 27.4.1944
U804   713 Deschimag, Seebeck 12.1942 1.4.1943 12.1943 sunk 9.4.1945
U805   714 Deschimag, Seebeck 12.1942 1943 2.1944 surrendered 14.5.1945, scuttled  5.2.1946
U806   715 Deschimag, Seebeck 4.1943 1943 4.1944 surrendered 5.1945, scuttled  21.12.1945
U807   716 Deschimag, Seebeck 1943 --- --- cancelled 9.1943
U808   717 Deschimag, Seebeck 1943 --- --- cancelled 9.1943
U809   718 Deschimag, Seebeck 1943 --- --- cancelled 9.1943
U810   719 Deschimag, Seebeck 1943 --- --- cancelled 9.1943
U811   720 Deschimag, Seebeck 1943 --- --- cancelled 9.1943
U812   721 Deschimag, Seebeck 1943 --- --- cancelled 9.1943
U841   1047 Deschimag, Bremen 3.1942 21.10.1942 2.1943 sunk 17.10.1943
U842   1048 Deschimag, Bremen 4.1942 14.11.1942 3.1943 sunk 6.11.1943
U843   1049 Deschimag, Bremen 4.1942 15.12.1942 3.1943 sunk 9.4.1945
U844   1050 Deschimag, Bremen 5.1942 30.12.1942 4.1943 sunk 16.10.1943
U845   1051 Deschimag, Bremen 6.1942 18.1.1943 5.1943 sunk 10.3.1944
U846   1052 Deschimag, Bremen 7.1942 17.2.1943 5.1943 sunk 4.5.1944
U853   1059 Deschimag, Bremen 8.1942 11.3.1943 6.1943 sunk 6.5.1945
U854   1060 Deschimag, Bremen 9.1942 5.4.1943 7.1943 sunk 4.2.1944
U855   1061 Deschimag, Bremen 10.1942 17.4.1943 8.1943 sunk 24.9.1944
U856   1062 Deschimag, Bremen 10.1942 11.5.1943 8.1943 sunk 7.4.1944
U857   1063 Deschimag, Bremen 11.1942 25.5.1943 9.1943 sunk 7.4.1945
U858   1064 Deschimag, Bremen 12.1942 17.6.1943 9.1943 surrendered 14.5.1945, to USA, sunk as target 20.11.1947
U865   1073 Deschimag, Bremen 1.1943 11.7.1943 10.1943 sunk 19.9.1944
U866   1074 Deschimag, Bremen 1.1943 29.7.1943 11.1943 sunk 18.3.1945
U867   1075 Deschimag, Bremen 2.1943 24.8.1943 12.1943 sunk 19.9.1944
U868   1076 Deschimag, Bremen 3.1943 18.9.1943 12.1943 surrendered 5.5.1945, scuttled  30.11.1945
U869   1077 Deschimag, Bremen 4.1943 5.10.1943 1.1944 sunk 28.2.1945
U870   1078 Deschimag, Bremen 4.1943 29.10.1943 2.1944 sunk 30.3.1945
U877   1085 Deschimag, Bremen 5.1943 10.12.1943 3.1944 sunk 27.12.1944
U878   1086 Deschimag, Bremen 6.1943 6.1.1944 4.1944 sunk 10.4.1945
U879   1087 Deschimag, Bremen 6.1943 11.1.1944 4.1944 sunk 30.4.1945
U880   1088 Deschimag, Bremen 7.1943 10.2.1944 5.1944 sunk 16.4.1945
U881   1089 Deschimag, Bremen 8.1943 4.3.1944 5.1944 sunk 6.5.1945
U882   1090 Deschimag, Bremen 8.1943 29.4.1944 --- sunk incomplete 30.3.1945
U889   1097 Deschimag, Bremen 9.1943 5.4.1944 8.1944 surrendered 15.5.1945, to USA, sunk as target 10.1.1946
U890   1098 Deschimag, Bremen 9.1943 24.4.1944 --- sunk incomplete 29.7.1944
U891   1099 Deschimag, Bremen 10.1943 4.5.1944 --- sunk incomplete 30.3.1945
U892   1100 Deschimag, Bremen 10.1943 --- --- cancelled 9.1943
U893   1101 Deschimag, Bremen 1943 --- --- cancelled 9.1943
U894   1102 Deschimag, Bremen 1943 --- --- cancelled 9.1943
U1221   384 Deutsche Werft, Hamburg 10.1942 2.5.1943 8.1943 sunk 3.4.1945
U1222   385 Deutsche Werft, Hamburg 11.1942 9.6.1943 9.1943 sunk 11.7.1944
U1223   386 Deutsche Werft, Hamburg 11.1942 16.6.1943 10.1943 scuttled  5.5.1945
U1224   387 Deutsche Werft, Hamburg 11.1942 7.7.1943 10.1943 to Japan 2.1944 (呂501 [RO501])
U1225   388 Deutsche Werft, Hamburg 12.1942 21.7.1943 11.1943 sunk 24.6.1944
U1226   389 Deutsche Werft, Hamburg 1.1943 21.8.1943 11.1943 foundered 28.10.1944
U1227   390 Deutsche Werft, Hamburg 2.1943 18.9.1943 12.1943 damaged 10.4.1945, never repaired
U1228   391 Deutsche Werft, Hamburg 2.1943 2.10.1943 12.1943 surrendered 5.1945, to USA, scuttled  5.2.1946
U1229   392 Deutsche Werft, Hamburg 3.1943 22.10.1943 1.1944 sunk 20.8.1944
U1230   393 Deutsche Werft, Hamburg 3.1943 8.11.1943 1.1944 surrendered 5.1945, scuttled  17.12.1945
U1231   394 Deutsche Werft, Hamburg 2.1943 18.11.1943 2.1944 surrendered 14.5.1945, to Soviet Union (Í-26 [N-26])
U1232   395 Deutsche Werft, Hamburg 4.1943 20.11.1943 3.1944 stricken 4.1945
U1233   396 Deutsche Werft, Hamburg 4.1943 23.12.1943 3.1944 surrendered 5.1945, scuttled  29.12.1945
U1234   397 Deutsche Werft, Hamburg 5.1943 7.1.1944 4.1944 scuttled 5.5.1945
U1235   398 Deutsche Werft, Hamburg 5.1943 25.1.1944 5.1944 sunk 15.4.1945
U1236   399 Deutsche Werft, Hamburg 6.1943 7.2.1944 --- BU incomplete 1946
U1237   400 Deutsche Werft, Hamburg 6.1943 22.2.1944 --- BU incomplete 1946
U1238   401 Deutsche Werft, Hamburg 7.1943 16.3.1944 --- BU incomplete 1946
U1239   402 Deutsche Werft, Hamburg 7.1943 --- --- cancelled 9.1943
U1240   403 Deutsche Werft, Hamburg 8.1943 --- --- cancelled 9.1943
U1241   404 Deutsche Werft, Hamburg 9.1943 --- --- cancelled 9.1943
U1242   405 Deutsche Werft, Hamburg 1943 --- --- cancelled 9.1943
U1243   406 Deutsche Werft, Hamburg 1943 --- --- cancelled 9.1943
U1244   407 Deutsche Werft, Hamburg 1943 --- --- cancelled 9.1943
U1245   408 Deutsche Werft, Hamburg 1943 --- --- cancelled 9.1943
U1246   409 Deutsche Werft, Hamburg 1943 --- --- cancelled 9.1943
U1247   410 Deutsche Werft, Hamburg 1943 --- --- cancelled 9.1943
U1248   411 Deutsche Werft, Hamburg 1943 --- --- cancelled 9.1943
U1249   412 Deutsche Werft, Hamburg 1943 --- --- cancelled 9.1943
U1250   413 Deutsche Werft, Hamburg 1943 --- --- cancelled 9.1943
U1501   726 Deschimag, Seebeck 1943 --- --- cancelled 9.1943
U1502   727 Deschimag, Seebeck 1943 --- --- cancelled 9.1943
U1503   728 Deschimag, Seebeck 1943 --- --- cancelled 9.1943
U1504   729 Deschimag, Seebeck 1943 --- --- cancelled 9.1943
U1505   730 Deschimag, Seebeck 1943 --- --- cancelled 9.1943
U1506   731 Deschimag, Seebeck 1943 --- --- cancelled 9.1943
U1513   1127 Deschimag, Bremen 1943 --- --- cancelled 9.1943
U1514   1128 Deschimag, Bremen 1943 --- --- cancelled 9.1943
U1515   1129 Deschimag, Bremen 1943 --- --- cancelled 9.1943



Displacement standard, t



Displacement normal, t

1120 / 1257

Length, m

76.8

Breadth, m

6.86

Draught, m

4.67

No of shafts

2

Machinery

2 MAN diesels / 2 SSW electric motors

Power, h. p.

4400 / 1000

Max speed, kts

18.2 / 7.3

Fuel, t

diesel oil 214
Endurance, nm(kts) 13850(10) / 63(4)

Armament

U167 - 170, 525 - 550: 1 x 1 - 105/42 SK C/32, 1 x 1 - 37/80 SK C/30, 1 x 1 - 20/65 C/38, 6 - 533 TT (4 bow, 2 stern, 22)

U183 - 194, 801, 802, 841 - 846, 853 - 856, 1221: 1 x 1 - 105/42 SK C/32, 1 x 1 - 37/80 SK C/30, 1 x 1 - 20/65 C/38, 6 - 533 TT (4 bow, 2 stern, 22 or 66 mines)

U803 - 806, 857, 858, 865 - 870, 877 - 881, 889, 1222 - 1235: 1 x 1 - 37/69 FlaK M/42, 2 x 2 - 20/65 C/38, 6 - 533 TT (4 bow, 2 stern, 22 or 66 mines)
Electronic equipment

completed 1942-1943: FuMO 29 radar, S-Gerät sonar, GHG hydrohone, FuMB 1 Metox ECM suite

completed 1943-1944: FuMO 29 radar, GHG hydrophone, FuMB 3 Bali, FuMB 6 Palau ECM suites
Complement 48
Diving depth operational, m 100

Project history: Oceangoing submarines for operations in far areas. The design was developed on the basis of U81-86 submarine cruisers of the period of the First World War with application of decisions included in the I series. Double-hulled, maximal diving depth was 200m, minimal diving time was 35sec. At the same time, the big dimensions done these submarines less mobile and manoeuvrable and fast in submerged position.

Series IXC had even more increased dimensions and other arrangement of oil fuel tanks. Advanced IXC/40 series had improved electronic equipment, and on last boats of this subgroup the deck sheathing was sheared for diving time reduction. In total 134 IXC/40 series submarines were ordered, but in the mid-1943, in connection with moral obsolescence of the project and reaming of mass building of XXI series, part of orders was cancelled. U882, U890 and U891 were destroyed during outfitting after launch.

All boats of a series were distinguished by presence of three periscopes. Instead of torpedoes 44 TMA or 66 TMB mines could be carried. Strengthening of antiaircraft armament has begun from late 1942. 37mm gun was transferred from a deck to a special platform ("Wintergarten") behind CT (under which two additional spare torpedoes were stored), instead of 1 single 20mm MG 2 single or twin such MGs were installed, 105mm gun was removed. From the second half of 1943 submarines received snorkel.

Modernizations: 1943 - 1944, most survived and completed boats were rearmed with artillery consisted of 1 x 1 - 37/69 FlaK M/42, 2 x 1 - 20/65 C/38 or 2 x 2 - 20/65 C/38 or 1 x 4 - 20/65 C/38

1943-1944, most survived early built: - S-Gerät sonar, FuMB 1 Metox ECM suite; + FuMB 3 Bali, FuMB 6 Palau ECM suites

1944-1945, some survived: - FuMO 29 radar; + FuMO 61 radar

Naval service: During operations 150 of 194 commissioned IX series submarines were lost.

U167 6.4.1943 was hard damaged by Hudsons of 233rd RAF sqn and scuttled by own crew at Canary islands. U168 was torpedoed 6.10.1944 by Dutch submarine Zwaardvis in Pacific ocean at Java. U169 was sunk 27.3.1943 by Flying Fortress bomber of 206th RAF sqn in Nothern Atlantic S off Iceland. U183 was sunk 23.4.1945 by American submarine Besugo in Pacific ocean at Java. U184 was lost 20-21.11.1942 off Newfoundland. U185 was sunk 24.8.1943 by Avengers and Wildcats from American escort carrier Core in the Central Atlantic. U186 was sunk 12.5.1943 by British destroyer Hesperus N off Azores. U187 was sunk 4.2.1943 by British destroyers Vimy and Beverley in Northern Atlantic. U188 was scuttled by own crew 25.8.1944 at Bordeaux. U189 was sunk 23.4.1943 by Liberator of 120th RAF sqn in Northern Atlantic E off Cape Farewell. U190 was transferred on reparations to Canada and sunk on manoeuvres 21.10.1947. U191 was sunk 23.4.1943 by British destroyer Hesperus in Northern Atlantic SE off Cape Farewell. U192 was sunk 6.5.1943 by British corvette Loosestrife in Northern Atlantic S off Cape Farewell. U193 after 23.4.1944 was lost in the Bay of Biscay. U194 was sunk 24.6.1943 by Catalina of VP-84 USN sqn in Northern Atlantic SW off Iceland.

U525 was sunk 11.8.1943 by Avengers and Wildcats of VC-1 sqn from American escort carrier Card NW off Azores. U526 was lost 14.4.1943 on British aviation mine at Lorient. U527 was sunk 23.7.1943 by Avenger of VC-9 sqn from American escort carrier Bogue S off Azores. U528 11.5.1943 was damaged by Halifax of 58th RAF sqn and sunk by British sloop Fleetwood in Northern Atlantic NW off Cape Finisterre. U529 was lost after 12.2.1943 in Northern Atlantic by unknown cause. U530 surrendered 10.7.1945 at Mar del Plata, Argentina, transferred to the USA and sunk on manoeuvres 20.11.1947. U531 was sunk 6.5.1943 by British destroyer Vidette NE off Newfoundland. U533 was sunk 16.10.1943 by Bisley of 244th RAF sqn in Gulf of Oman. U534 was sunk 5.5.1945 by Liberator of 86th RAF sqn in Kattegat, raised in 1993 and since 1996 served as museum. U535 was sunk 5.7.1943 by Liberator of 53rd RAF sqn in Bay of Biscay. U536 was sunk 20.11.1943 by British frigate Nene and Canadian corvettes Snowberry and Calgary NE off Azores. U537 was torpedoed 10.11.1944 by American submarine Flounder at Surabaya (Java). U538 was sunk 21.11.1943 by British escort destroyer Foley and sloop Crane in Northern Atlantic W off Cape Finisterre. U540 was sunk 17.10.1943 by Liberators of 120th and 59th RAF sqns in Northern Atlantic SE off Cape Farewell. U542 was sunk 26.11.1943 by Wellington of 179th RAF sqn in the Central Atlantic N off Madeira. U543 was sunk 2.7.1944 by Avenger of VC-58 sqn from American escort carrier Wake Island SW off Canary Islands. U544 was sunk 16.1.1944 by Avenger of VC-13 sqn from American escort carrier Guadalcanal NW off Azores. U545 10.2.1944 was hard damaged by Wellington of 612th RAF sqn W off Gebrides and 11.2.1944 scuttled by own crew. U546 was sunk 24.4.1945 by American escort destroyers Flaherty, Neunzer, Chatelain, Varian, Janssen, Joseph C. Hubbard, Pillsbury and Keith NW off Azores. U547 was hard damaged 11.8.1944 on a mine in a mouth of Gironde and 31.12.1944 stricken at Stettin. U548 was sunk 19.4.1945 by American escort destroyers Buckley and Reuben James SE off Halifax. U549 was sunk 29.5.1944 by American escort destroyers Eugene E. Elmore and Ahrens in Northern Atlantic SW off Madeira. U550 was sunk 16.4.1944 by American escort destroyers Gandy, Joyce and Peterson E off New York.

U801 was sunk 17.3.1944 by American destroyer Ñîrró, escort destroyer Bronstein and Avengers and Wildcats from escort carrier Block Island W off Cape Verde. U803 was lost 27.4.1944 on British aviation mine N off Swinemünde, raised and stricken 9.8.1944. U804 was sunk 9.4.1945 by Mosquitoes of 143rd, 235th and 248th RAF sqns in Kattegat NW off Göteborg. U805 surrendered 14.5.1945 at Portsmouth (USA) and scuttled 5.2.1946 in Northern Atlantic. U841 was sunk 17.10.1943 by British frigate Byard in Northern Atlantic E off Cape Farewell. U842 was sunk 6.11.1943 by British sloops Starling and Wild Goose W off Newfoundland. U843 was sunk 9.4.1945 by Mosquito of 235th RAF sqn in Kattegat W off Göteborg. U844 was sunk 16.10.1943 by Liberators of 86th and 59th RAF sqns in Northern Atlantic SW off Iceland. U845 was sunk 10.3.1944 by British destroyer Forester and Canadian destroyer St. Laurent, corvette Owen Sound and frigate Swansea in Northern Atlantic W off Brest. U846 was sunk 4.5.1944 by Wellington of 407th RAF sqn in the Bay of Biscay.

U865 after 8.9.1944 was lost N off the British Islands by unknown cause. U866 was sunk 18.3.1945 by American escort destroyers Lowe, Menges, Pride and Mosley in Northern Atlantic SE off Halifax. U867 was damaged 19.9.1944 by Liberator of 224th RAF sqn and owing to diesels malfunction scuttled by own crew NW off Bergen. U869 was sunk 11.2.1945 by American escort destroyers Howard D. Crow and Koiner SW off New York. U870 was lost 30.3.1945 during raid of US 8th Air Army bombers to Bremen. U877 was sunk 27.12.1944 by Canadian corvette St. Thomas in Northern Atlantic E off Newfoundland. U878 was sunk 10.4.1945 by British destroyer Vanquisher and corvette Tintagel Castle in Northern Atlantic SW off Ireland. U879 was sunk 30.4.1945 by American frigate Matches and escort destroyers Coffman, Bostwick and Thomas at East US Coast NE off Cape Hatteras. U880 was sunk 16.4.1945 by American escort destroyers Frost and Stanton in Northern Atlantic. U881 was sunk 6.5.1945 by American escort destroyer Farquhar SE off Newfoundland. U889 was transferred on reparations to the USA and sunk on manoeuvres 10.1.1946.

U1221 was lost 3.4.1945 during raid of US 8th Air Army bombers to Kiel. U1222 was sunk 11.7.1944 by Sunderland of 201st RAF sqn in the Bay of Biscay W off La Rochelle. U1224 15.2.1944 was transferred to Japan as RO501 and sunk 13.5.1944 by American escort destroyer Francis M. Robinson in Central Atlantic NW off Cape Verde. U1225 was sunk 24.6.1944 by Canso of 162nd RCAF sqn NW off Bergen. U1226 after 23.10.1944 was lost in Northern Atlantic by unknown cause. U1227 was hard damaged 9.4.1945 during raid of British bombers to Kiel and 3.5.1945 scuttled at Kiel. U1228 was transferred on reparations to the USA and scuttled 5.2.1946. U1229 was sunk 20.8.1944 by Avengers and Wildcats from American escort carrier Bogue SE off Newfoundland. U1231 was transferred on reparations to the USSR as N-26, then B-26, BU in 1968. U1232 was stricken in April, 1945 and transferred on reparations to United Kingdom, she was sunk 4.3.1946 under tow at following to scuttling point. U1234 was sunk 14.5.1944 as a result of collision with tugboat Anton at Gotenhaven, raised and commissioned 17.10.1944 again, she was scuttled by own crew 5.5.1945 at Hörup Haff. U1235 was sunk 15.4.1945 by American escort destroyers Frost and Stanton in Northern Atlantic.

U170, U532, U539, U541, U802, U806, U868, U1230 and U1233 surrendered and were scuttled by Allies during operation "Deadlight".

U805 1944
