U25 1940
U26 1940
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| U25 | 903 | Deschimag, Bremen | 6.1935 | 14.2.1936 | 4.1936 | sunk 3.8.1940 | |
| U26 | 904 | Deschimag, Bremen | 8.1935 | 14.3.1936 | 5.1936 | sunk 1.7.1940 |
|
Displacement standard, t |
|
|
Displacement normal, t |
862 / 983 |
|
Length, m |
72.4 |
|
Breadth, m |
6.21 |
|
Draught, m |
4.30 |
|
No of shafts |
2 |
|
Machinery |
2 MAN diesels / 2 BBC electric motors |
|
Power, h. p. |
3080 / 1000 |
|
Max speed, kts |
18.6 / 8.3 |
|
Fuel, t |
diesel oil 96 |
| Endurance, nm(kts) | 7900(10) / 78(4) |
|
Armament |
1 x 1 - 105/42 SK C/32, 1 x 1 - 20/65 C/30, 6 - 533 TT (4 bow, 2 stern, 14 or 42 mines) |
| Electronic equipment | GHG hydrophone |
|
Complement |
43 |
| Diving depth operational, m | 100 |
Project history: First submarines, designed in Germany after the First World War. Order for 2 ships was given out 17.12.1934, long before official denunciation of Versailles Peace Treaty. By construction they practically completely repeated E1, built for Spain, but later sold to Turkey as Gür. Saddle-tank type, maximal diving depth was 150m. Instead of torpedoes they could carry accept 28 TMA or 42 TMB mines. Submarines were considered unsuccessful because of bad seaworthy and manoeuvring capabilities, and also an endurance not too differing from medium submarines of VII series.
Modernizations: None.
Naval service: U25 was lost, presumably, 1.8.1940 N off Terschelling on the mines laid by British destroyers Esk, Express, Icarus and Impulsive. U26 was sunk 1.7.1940 by British corvette Gladiolus and Sunderland of 10th RAAF sqn SW off Ireland.

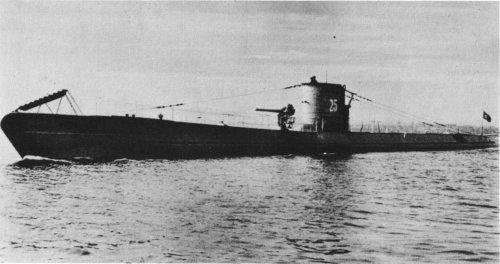

U25
