Brummer 1939
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Brummer | 894 | Deschimag, Bremen | 27.12.1934 | 29.5.1935 | 8.2.1936 | sunk 14.4.1940 |
|
Displacement standard, t |
2410 |
|
Displacement full, t |
3354 |
|
Length, m |
108.0 wl 112.9 oa |
|
Breadth, m |
13.5 |
|
Draught, m |
3.20 normal 4.20 deep load |
|
No of shafts |
2 |
|
Machinery |
2 sets Deschimag geared steam turbines, 2 Wagner boilers |
|
Power, h. p. |
10000 |
|
Max speed, kts |
20 |
|
Fuel, t |
oil 365 |
| Endurance, nm(kts) | 2400(15) |
|
Armament |
2 x 2 - 105/60 SK C/33, 2 x 1 - 88/42 SK C/35, 2 x 2 - 37/80 SK C/30, 2 x 1 - 20/65 C/30, 450 mines |
|
Complement |
182 + 298 cadets |
Project history: Ship was ordered as "Ersatz Hai". Purpose-built ship for training of an antiaircraft artillery personnel, armed by various samples of antiaircraft guns and MGs (105mm/65, 88mm/45, 37mm/83 and 20mm/65). In wartime she could be used as a minelayer (she can carry up to 450 mines) or command ship. Besides 182 crew members ship took aboard up to 298 cadets. As well as in a case with Bremse, machinery had experimental character.
Brummer was first German combat ship with machinery used high parameters steam, consisting of 2 Wagner boilers (70atm, 460°C) and twin-shaft Deschimag turbines, subsequently applied on German destroyers. On trials Brummer achieved 23kts at 10500hp. Operating experience has shown low reliability of machinery.
Modernizations: 1939: + 6 x 1 - 20/65 C/30
Naval service: 14.4.1940 Brummer was torpedoed by British submarine Sterlet in Skagerrack and has sunk next day.

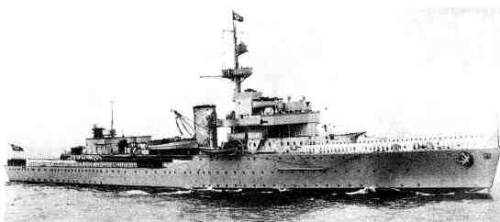

Brummer before war

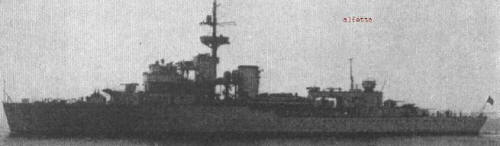

Brummer
