Ariadne 1944
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Ariadne (ex-Vliereede, ex-Hertog Hendrik) | Rijkswerf, Amsterdam, Netherlands | 1900 | 7.6.1902 | 5.1.1904 // 11.1943 | surrendered 5.1945, to Netherlands 1946 | ||
| Undine (ex-Ijmuiden, ex-Jacob van Hemskerck) | Rijkswerf, Amsterdam, Netherlands | 1900 | 22.9.1906 | 22.4.1908 // 4.1944 | surrendered 5.1945, to Netherlands 1946 |
|
Displacement standard, t |
|
|
Displacement full, t |
Ariadne: 4371 |
|
Length, m |
Ariadne: 96.6 Undine: 100.8 |
|
Breadth, m |
15.1 |
|
Draught, m |
5.79 |
|
No of shafts |
none or 2 |
|
Machinery |
none or 2 VTE, 6 Yarrow boilers |
|
Power, h. p. |
none or 6300 |
|
Max speed, kts |
none or 16 |
|
Fuel, t |
Ariadne: none or coal 830 Undine: none or coal 610 |
|
Endurance, nm(kts) |
Ariadne: none or 4000(10) Undine: none or 3300(10) |
| Armour, mm | Harvey steel; belt: 152-102, deck: 51 |
|
Armament |
8 x 1 - 105/42 SK C/32, 2 x 2 - 40/56 FlaK 28, 1 x 1 - 40/56 FlaK 28, 4 x 4 - 20/65 C/38 |
| Electronic equipment | FuMO 213 radar |
|
Complement |
Project history: Former Dutch coast defence battleships Hertog Hendrik and Jacob van Heemskerck, renamed Vliereede and Ijmuiden respectively in 1939. Ijmuiden 14.5.1940 was scuttled at Ijmuiden, 16.7.1940 salvaged by Germans and in March, 1941 towed off to Kiel. Vliereede 14.5.1940 was captured by German troops at Ijmuiden, 22.6.1940 sunk by British aircraft, salvaged in October, 1940 and towed off to Kiel.
In 1941-1943 both were converted to floating AA batteries. Superstructures were practically completely sheared, new armament and fire control systems with Würzburg radar were installed. Information about self-propelling ability is contradictory: under one version main machinery was demounted, only boiler for turbine-generators and household needs was retained; under other version, both ships retained main machines. Ships belonged to different classes and were differed among themselves by dimensions and an arrangement of superstructures a little.
Ship protection: Ariadne has 152mm belt (102mm) at ship ends, connected with 51mm deck by 51mm slopes. 152mm part of main belt was closed by 152mm transverse bulkheads. Barbette armour (197mm on Undine and 245-102mm on Ariadne was retained). Presumably, ships retained old conning towers with 194mm sides on Undine and 246mm sides on Ariadne.
Modernizations: None.
Naval service: After war both were returned to the Netherlands and broken up in 1969-1974.

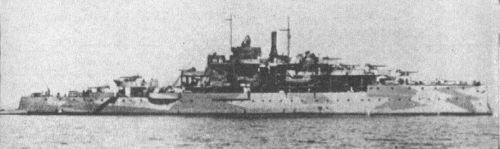

Undine
