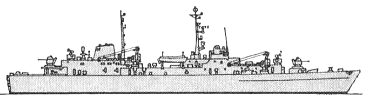

Sachsenwald 1975
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Sachsenwald | A1437 | Blohm und Voss, Hamburg | 1.8.1966 | 10.12.1966 | 20.8.1969 | stricken 9.1991 | |
| Steigerwald | A1438 | Blohm und Voss, Hamburg | 9.5.1966 | 10.3.1967 | 20.8.1969 | stricken 11.1993 |
|
Displacement standard, t |
2962 |
|
Displacement full, t |
3379 |
|
Length, m |
106.8 wl 110.7 oa |
|
Breadth, m |
13.9 |
|
Draught, m |
4.20 |
|
No of shafts |
2 |
|
Machinery |
2 MTU MD872 diesels |
|
Power, h. p. |
5600 |
|
Max speed, kts |
17 |
|
Fuel, t |
diesel oil 250 |
| Endurance, nm(kts) | 3500(14) |
|
Armament |
2 x 2 - 40/70 Breda-Bofors 106, mines |
|
Electronic equipment |
radar |
|
Complement |
65 |
Project history: Projected under the auxiliary shipbuilding programme of 1959, both units were designed in 1963 and ordered in 1965. Officially, they were Type 762 mine transports, but they had full minelaying capabilities. All decks had minerails, the stern had four hatch-covered launching ramps and two rails on deck lead to the sideward launching positions. Their crane equipment enabled them to supply other ships with mines.
Modernizations: None.
Naval service: No significant events.

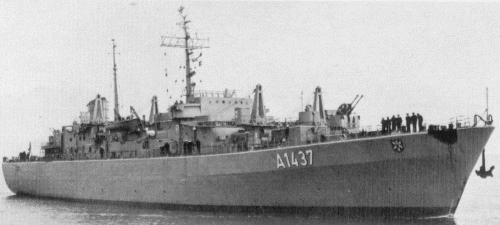

Sachsenwald 1979
