Mühlhausen 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Mühlhausen (ex-Walther von Ledebur) | M1052 | Burmester, Bremen | 30.6.1966 | 21.12.1967 // 6.4.1995 | stricken 6.2007 |
|
Displacement standard, t |
775 |
|
Displacement full, t |
825 |
|
Length, m |
63.2 |
|
Breadth, m |
10.6 |
|
Draught, m |
3.00 |
|
No of shafts |
2 |
|
Machinery |
2 Maybach 16-cyl diesels |
|
Power, h. p. |
5200 |
|
Max speed, kts |
19 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | |
|
Armament |
mechanical, magnetic, acoustic minesweeping gear |
|
Electronic equipment |
Kelvin Hughes 14/9 radar |
|
Complement |
Project history: The Type 340. Employed in mine warfare research until decommissioning in 1994. Reactivated in 1995 and converted to serve as a research ship, with mechanical, acoustic, and magnetic mine countermeasures gear. Had two 600kW sweep current generators. Wooden construction.
Modernizations: 1997: + decompression chamber and other diver support equipment
Naval service: No significant events.

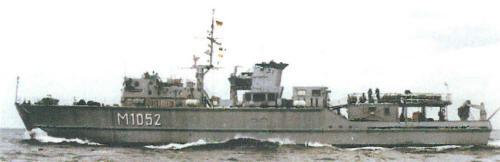

Mühlhausen 2003
© Ivan Gogin, 2018
