Hansa 1960
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Hansa | W22, 1.1968- M2662, 1969- Y806, 1987- M1052 | Kröger-Werft, Schacht-Audorf | 18.11.1957 | 7.1958 | mine diver boat 1969, stricken 1.1992 |
|
Displacement standard, t |
155 |
|
Displacement full, t |
175 |
|
Length, m |
34.0 wl 35.2 oa |
|
Breadth, m |
6.60 |
|
Draught, m |
1.90 |
|
No of shafts |
1 |
|
Machinery |
1 Mercedes-Benz MB820Db diesel |
|
Power, h. p. |
1000 |
|
Max speed, kts |
14 |
|
Fuel, t |
diesel oil 14 |
| Endurance, nm(kts) | 1500(12) |
|
Armament |
1 x 1 - 40/70 Bofors 315, mechanical, acoustic and magnetic minesweeping gear |
|
Electronic equipment |
TRS-N radar |
|
Complement |
20 |
Project history: Hansa and Niobe were designed in 1955-56 as coast guard boats of the Types 361 and 360, differed in the propulsion arrangement: Hansa had one shaft, Niobe two. These wooden boats were the first to use non-magnetic materials. In 1968 they were reclassified as riverine minesweepers Types 392 and 391, their pennant number changing from 'W' to 'M' prefix.
Modernizations: 1969: - minesweeping gear; + diving equipment
Naval service: No significant events.

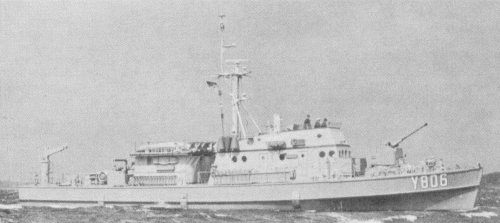

Hansa 1975
