Frauenlob 1970
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Frauenlob | W31, 1.1968- M2658 | Kröger-Werft, Rendsburg | 26.2.1965 | 9.1966 | stricken 3.2002 | ||
| Nautilus | W32, 1.1968- M2659 | Kröger-Werft, Rendsburg | 19.5.1965 | 10.1966 | stricken 4.1994 | ||
| Gefion | W33, 1.1968- M2660 | Kröger-Werft, Rendsburg | 19.6.1965 | 2.1967 | stricken 3.2002 | ||
| Medusa | W34, 1.1968- M2661 | Kröger-Werft, Rendsburg | 25.1.1966 | 2.1967 | stricken 6.2001 | ||
| Undine | W35, 1.1968- M2662 | Kröger-Werft, Rendsburg | 16.5.1966 | 3.1967 | stricken 6.2001, to Estonia (Vaindlo) | ||
| Minerva | W36, 1.1968- M2663 | Kröger-Werft, Rendsburg | 25.8.1966 | 6.1967 | stricken 2.1995, to Estonia (Kalev) | ||
| Diana | W37, 1.1968- M2664 | Kröger-Werft, Rendsburg | 13.12.1966 | 9.1967 | stricken 2.1995, to Estonia (Olev) | ||
| Loreley | M2665 | Kröger-Werft, Rendsburg | 14.3.1967 | 3.1968 | stricken 6.2002, to Estonia | ||
| Atlantis | M2666 | Kröger-Werft, Rendsburg | 20.6.1967 | 3.1968 | stricken 3.1995 | ||
| Acheron | M2667 | Kröger-Werft, Rendsburg | 11.10.1967 | 2.1969 | stricken 3.1995 |
|
Displacement standard, t |
238 |
|
Displacement full, t |
246 |
|
Length, m |
35.4 wl 38.0 oa |
|
Breadth, m |
8.00 |
|
Draught, m |
2.10 |
|
No of shafts |
2 |
|
Machinery |
2 Mercedes-Benz MB820Db diesels |
|
Power, h. p. |
2000 |
|
Max speed, kts |
14.5 |
|
Fuel, t |
diesel oil 13 |
| Endurance, nm(kts) | 993(12) |
|
Armament |
1 x 1 - 40/70 Bofors 315, mechanical, acoustic and magnetic minesweeping gear |
|
Electronic equipment |
TRS-N radar |
|
Complement |
24 |
Project history: These coast guard boats ('KW 60') of the Type 362 were reclassified in 1967 to riverine minesweepers of the Type 394. They resembled the previous Ariadne class.
Modernizations: None.
Naval service: No significant events.

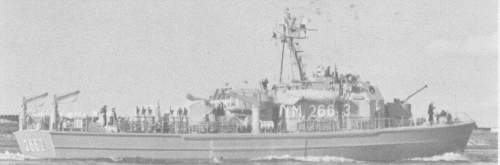

Minerva 1977
