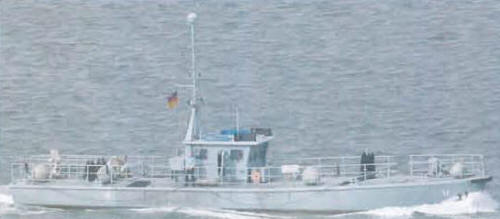

Seehund 1 1990
|
Names |
Seehund 1 - 18 |
|
Builders |
MAK, Kiel: Seehund 1-18 |
|
Commissioned |
1980: Seehund 1-3 1981: Seehund 4-12 1982: Seehund 13-18 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
2015: Seehund 2, 11-13, 15, 17 in service (2019): Seehund 1, 3-10, 14, 16, 18 |
|
Displacement standard, t |
91 |
|
Displacement full, t |
99 |
|
Length, m |
26.9 |
|
Breadth, m |
4.60 |
|
Draught, m |
1.40 |
|
No of shafts |
1 Schöttel propeller / rudder |
|
Machinery |
1 MWM TRHS518A diesel |
|
Power, h. p. |
445 |
|
Max speed, kts |
10 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 520(9) |
|
Armament |
magnetic minesweeping solenoid, 2x SDG-21 mechanical minesweeping gear |
|
Complement |
0 / 3 |
Project history: Ordered in 1977 to operate three-apiece with the Type 351 control ships. Beginning in 1999, were converted to work with the Type 352 conversion control ships. Essentiallythey are remote-controlled, self-propelled magnetic minesweeping solenoids with all machinery highly shock-protected. Also able to stream two sets Type SDG-21 Oropesa mechanical minesweeping gear.
Modernizations: None.
Naval service: No significant events.
Seehund 17 2008
