Names |
RH1 (ex-MvI), 12.1940 - R201, 9.1941 - RA51, 4.1944 - G3181, 8.1944 - SM221 RH2 (ex-MvII), 12.1940 - R202, 10.1941 - RA52, 4.1944 - G3182, 8.1944 - SM222 RH3 (ex-MvIII), 12.1940 - R203, 11.1941 - RA53 RH4 (ex-MvIV), 12.1940 - R204, 12.1941 - RA54, 4.1944 - G3184; 8.1944 - SM224 RH5 (ex-MvXI), 12.1940 - R205, 1941 - RA55 R206 (ex-MvXII), 1941 - RA56, 4.1944 - G3183, 8.1944 - SM223 |
|
Builders |
De Vries-Lentsch, Amsterdam: RH1-5, R206 |
|
Commissioned |
8 - 12.1940: RH1-5, R206 |
|
Losses |
SM221 (24.8.1944), SM222 (29.8.1944), RA53 (8/1941), SM224 (1944), RA55 (8/1941), SM223 (29.8.1944) |
|
Transfers |
none |
|
Discarding |
none |
|
Displacement standard, t |
|
|
Displacement full, t |
51 |
|
Length, m |
22.0 wl 23.0 oa |
|
Breadth, m |
4.50 |
|
Draught, m |
1.10 normal 1.30 deep load |
|
No of shafts |
2 |
|
Machinery |
2 Kromhout diesels |
|
Power, h. p. |
220 |
|
Max speed, kts |
11 |
|
Fuel, t |
diesel oil 6.0 |
| Endurance, nm(kts) | |
|
Armament |
1 x 1 - 37/80 SK C/30, 3 x 1 - 20/65 C/38, mechanical minesweeping gear |
|
Complement |
Project history: RA51 class were ex-Dutch minesweeping boats Mvl-IV, XI and XII. They were captured on slipways in 1940 and completed for Kriegsmarine. They originally received numbers RH1-6, 15.12.1940 renamed as R202-205 and in September — November, 1941 as RA51-56.
Modernizations: None.
Naval service: No significant events.

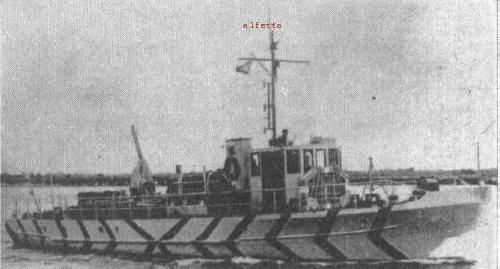

RA52
