FR1 1938
|
Names |
FR1 - 12 |
|
Builders |
Lürssen, Vegesack: FR1-12 |
|
Commissioned |
1938: FR1 - 6 1939: FR7 - 12 |
|
Losses |
FR2 (26.10.1944), FR5 (5/1945), FR6 (6.9.1941), FR8 (5/1945), FR11 (7.10.1944), FR12 (11.10.1941) |
|
Transfers |
none |
|
Discarding |
surrendered 5.1945: FR1, FR3, FR4, FR7, FR9, FR10 |
|
Displacement standard, t |
|
|
Displacement full, t |
FR1 - 6: 21 FR7 - 12: 27 |
|
Length, m |
FR1 - 6: 15.4 FR7 - 12: 17.4 |
|
Breadth, m |
3.30 |
|
Draught, m |
FR1 - 6: 0.80 FR7 - 12: 0.85 |
|
No of shafts |
2 |
|
Machinery |
2 Kämper diesels |
|
Power, h. p. |
FR1 - 6: 260 FR7 - 12: 300 |
|
Max speed, kts |
13 |
|
Fuel, t |
diesel oil 1.0 |
| Endurance, nm(kts) | |
|
Armament |
1 x 1 - 20/65 C/38, mechanical minesweeping gear |
|
Complement |
9 - 10 |
Project history: Medium (Mittlere Räumboot, MR), small (Kleine Räumboot, KR) and river (Fluß-Räumboot, FR) R-boats were minesweeping boats for service on shallow-water and lake-river areas.
Modernizations: 1943, all survived: - 1 x 1 - 20/65; + 1 x 1 - 15/84, 1 x 1 - 13.2/76.
Naval service: No significant events.

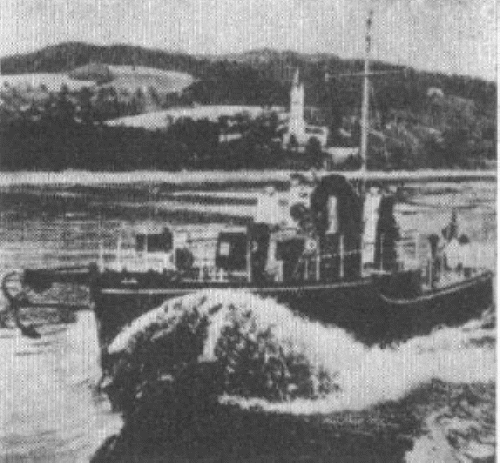

FR1
