S7 1935
|
Names |
S7 - 9 |
|
Builders |
Lürssen, Vegesack: S7 - 9 |
|
Commissioned |
9-10/1934: S7, 8 6.1935: S9 |
|
Losses |
none |
|
Transfers |
United Kingdom 1945: S7 (scuttled 2.5.1946) USA 1945: S9 (scuttled 2.5.1946) |
|
Discarding |
5/1945: S8 (hulk) surrendered 5.1945: S7, 9 |
|
Displacement standard, t |
76 |
|
Displacement full, t |
86 |
|
Length, m |
32.4 |
|
Breadth, m |
5.06 |
|
Draught, m |
1.36 |
|
No of shafts |
3 |
|
Machinery |
3 MAN L7 Zu 19/30 diesels |
|
Power, h. p. |
3960 |
|
Max speed, kts |
36.5 |
|
Fuel, t |
diesel oil 10.5 |
| Endurance, nm(kts) | 758(22) |
|
Armament |
1 x 1 - 20/65 C/30, 2 - 533 TT |
| Complement | 18 - 23 |
Project history: Torpedo motorboats (Schnellboote) were the development of successful prototype created by F. Lürssen in 1929. General characteristic lines for all series were round-bilge hull with small deadrise, triple-shaft diesel machinery, presence of two auxiliary rudders for creation of "Lürssen effect" (fitting of rudders under an angle to centreline for speed increase) and a bow arrangement of two TTs. Composite hull included light alloy framing, wooden planking and steel engine seating.
Modernizations: 1940, S8, 9: - 2 - 533 TT; + 6 mines or DCs.
1941, most: - 1 x 1 - 20/65; + 2 x 1 - 20/65 C/38
1942 - 1943, S7: + 6 mines or DCs
Naval service: No significant events.

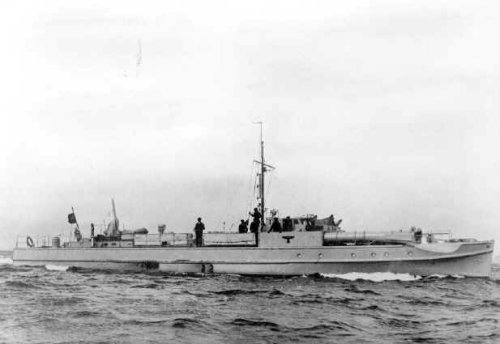

S8
