KRIEGSMARINE (GERMANY)

COASTAL FORCES

S26 motor torpedo boats (1940)

S26 1940

Name No Yard No Builder Laid down Launched Comp Fate
S26   12767 Lürssen, Vegesack   7.3.1940 5.1940 sunk 19.8.1944
S27   12771 Lürssen, Vegesack   15.4.1940 7.1940 sunk 5.9.1942
S28   12772 Lürssen, Vegesack   4.7.1940 9.1940 damaged 20.8.1944, scuttled 25.8.1944
S29   12773 Lürssen, Vegesack   15.10.1940 11.1940 sunk 29.3.1943



Displacement standard, t

92.5

Displacement full, t

112

Length, m

34.9

Breadth, m

5.28

Draught, m

1.67

No of shafts

3

Machinery

3 Daimler-Benz MB501 diesels

Power, h. p.

6000

Max speed, kts

39

Fuel, t

diesel oil 13.5
Endurance, nm(kts) 700(35)

Armament

2 x 1 - 20/65 C/38, 2 - 533 TT (4), 2 DCR (6)

Complement 24 - 31

Project history: Torpedo motorboats (Schnellboote) were the development of successful prototype created by F. Lürssen in 1929. General characteristic lines for all series were round-bilge hull with small deadrise, triple-shaft diesel machinery, presence of two auxiliary rudders for creation of "Lürssen effect" (fitting of rudders under an angle to centreline for speed increase) and a bow arrangement of two TTs. Composite hull included light alloy framing, wooden planking and steel engine seating.

Since S26 series boats had a forecastle. Besides two torpedoes in tubes, all S-boats could carry two spare torpedoes (or 4-6 mines). Artillery in days of war was continuously strengthened.

Modernizations: 1942 - 1943, all survived: can carry 4 - 6 mines instead of spare torpedoes

late 1942, S29: - 1 x 1 - 20/65; + 1 x 1 - 40/56 FlaK 28

1943, some: - 1 x 1 - 20/65; + 1 x 2 - 20/65 C/38 or 1 x 4 - 20/65 C/38, 1 x 1 - 20/65 C/38 or 1 x 2 - 15/84

1943, all survived: main engines were forced to 7500hp, maximal speed increased to 41kts.

Naval service: S26 20.8.1944 was sunk by Soviet aircraft at Sulina; S27 was lost 5.9.1942 as result of hit of faulty torpedo from S72 off Taman; S28 20.8.1944 was damaged by Soviet aircraft at Constanza and scuttled by crew 25.8.1944 at Varna; S29 was sunk 29.3.1943 by British escort destroyers Blencathra, Windsor and MGB321 and MGB333 in La Manche.

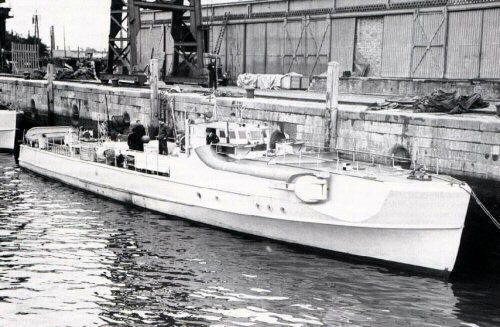

S26
