S18 1939
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| S18 | 12755 | Lürssen, Vegesack | 13.1.1938 | 7.1938 | tug Herold 2.1943 | ||
| S19 | 12760 | Lürssen, Vegesack | 10.5.1938 | 10.1938 | surrendered 5.1945, to United Kingdom 1945, target | ||
| S20 | 12761 | Lürssen, Vegesack | 1.10.1938 | 3.1939 | surrendered 5.1945, to United Kingdom 1945, sold | ||
| S21 | 12762 | Lürssen, Vegesack | 1.8.1938 | 12.1938 | surrendered 5.1945, to USA 1945, to Norway 1947, BU | ||
| S22 | 12763 | Lürssen, Vegesack | 31.1.1939 | 5.1939 | TS 1.1945, surrendered 5.1945? | ||
| S23 | 12764 | Lürssen, Vegesack | 23.4.1939 | 7.1939 | sunk 12.7.1940 | ||
| S24 | 12766 | Lürssen, Vegesack | 4.7.1939 | 9.1939 | surrendered 5.1945, to USSR 1.1946 (ÒÊ-1004 [TK-1004]) | ||
| S25 | 12790 | Lürssen, Vegesack | 19.9.1939 | 12.1939 | surrendered 5.1945, to United Kingdom 1945, sold |
|
Displacement standard, t |
92,5 |
|
Displacement full, t |
105 |
|
Length, m |
34.6 |
|
Breadth, m |
5.26 |
|
Draught, m |
1.67 |
|
No of shafts |
3 |
|
Machinery |
3 Daimler-Benz MB501 diesels |
|
Power, h. p. |
6000 |
|
Max speed, kts |
39.8 |
|
Fuel, t |
diesel oil 13,3 |
| Endurance, nm(kts) | 700(35) |
|
Armament |
1 x 1 - 20/65 C/30, 2 - 533 TT (4) |
| Complement | 20 - 23 |
Project history: Torpedo motorboats (Schnellboote) were the development of successful prototype created by F. Lürssen in 1929. General characteristic lines for all series were round-bilge hull with small deadrise, triple-shaft diesel machinery, presence of two auxiliary rudders for creation of "Lürssen effect" (fitting of rudders under an angle to centreline for speed increase) and a bow arrangement of two TTs. Composite hull included light alloy framing, wooden planking and steel engine seating.
Modernizations: 1941, most survived: - 1 x 1 - 20/65; + 2 x 1 - 20/65 C/38
1942 - 1943, all survived: + 6 DCs or mines
late 1942, some: - 1 x 1 - 20/65; + 1 x 1 - 37/80 SK C/30 or 1 x 1 - 40/56 FlaK 28
1943, some: - 1 x 1 - 20/65; + 1 x 2 - 20/65 C/38 or 1 x 4 - 20/65 C/38, 1 x 1 - 20/65 C/38 or 1 x 2 - 15/84
Naval service: 2 boats of S18 class were lost: S18 5.5.1945 was sunk by British aircraft at coast of Denmark; S23 12.7.1940 was mined in La Manche. S24 on reparations was transferred to the USSR.

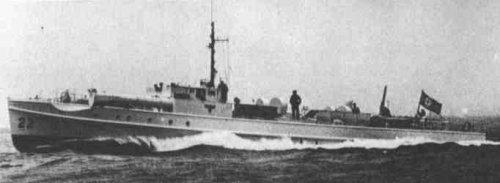

S22
