Seetaucher 1970
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Seetaucher | LCM1 | Rheinwerft, Walsum | 1966 | to Greece 4.1991 (ABM20) | |||
| Seenadel | LCM2 | Rheinwerft, Walsum | 1966 | to Greece 4.1991 (ABM21) | |||
| Seedrache | LCM3 | Rheinwerft, Walsum | 1966 | to Greece 4.1991 (ABM22) | |||
| Seespinne | LCM4 | Rheinwerft, Walsum | 1966 | to Greece 4.1991 (ABM23) | |||
| Seeotter | LCM5 | Rheinwerft, Walsum | 1966 | to Greece 4.1991 (ABM24) | |||
| Seezunge | LCM6 | Rheinwerft, Walsum | 1966 | to Greece 4.1991 (ABM25) | |||
| Seelilie | LCM7 | Rheinwerft, Walsum | 1966 | to Greece 4.1991 (ABM26) | |||
| Seefeder | LCM8 | Rheinwerft, Walsum | 1966 | to Greece 4.1991 (ABM27) | |||
| Seerose | LCM9 | Rheinwerft, Walsum | 1966 | to Greece 4.1991 (ABM28) | |||
| Seenelke | LCM10 | Rheinwerft, Walsum | 1966 | to Greece 4.1991 (ABM29) | |||
| Huchen | LCM11 | Rheinwerft, Walsum | 1966 | to Greece 4.1991 (ABM30) | |||
| Sprotte | LCM12, 1991- L771, 1995- LCM12 | Rheinwerft, Walsum | 1966 | stricken 9.1993 | |||
| Sardine | LCM13, 1991- L772, 1995- LCM13 | Rheinwerft, Walsum | 1966 | stricken 3.1993 | |||
| Sardelle | LCM14, 1991- L773, 1995- LCM14 | Rheinwerft, Walsum | 1966 | stricken 2007 | |||
| Hering | LCM15, 1991- L774, 1995- LCM15 | Rheinwerft, Walsum | 1966 | stricken 7.1994 | |||
| Orfe | LCM16, 1991- L775, 1995- LCM16 | Rheinwerft, Walsum | 1966 | stricken 10.1993 | |||
| Maräne | LCM17, 1991- L776, 1995- LCM17 | Rheinwerft, Walsum | 1966 | stricken 4.1993 | |||
| Saibling | LCM18, 1991- L777, 1995- LCM18 | Rheinwerft, Walsum | 1966 | stricken 4.1993 | |||
| Stint | LCM19, 1991- L778, 1995- LCM19 | Rheinwerft, Walsum | 1966 | stricken 4.1993 | |||
| Aesche | LCM20, 1991- L779, 1995- LCM20 | Rheinwerft, Walsum | 1966 | stricken 4.1993 | |||
| Hummer | LCM21, 1991- L780, 1995- LCM21 | Rheinwerft, Walsum | 1966 | stricken 3.2000 | |||
| Krill | LCM22, 1991- L781, 1995- LCM22 | Rheinwerft, Walsum | 1966 | stricken 6.1996 | |||
| Krabbe | LCM23, 1991- L782, 1995- LCM23 | Rheinwerft, Walsum | 1967 | stricken 2004 | |||
| Auster | LCM24, 1991- L783, 1995- LCM24 | Rheinwerft, Walsum | 1967 | stricken 3.2000 | |||
| Muschel | LCM25, 1991- L784, 1995- LCM25 | Rheinwerft, Walsum | 1967 | stricken 2007 | |||
| Koralle | LCM26, 1991- L785, 1995- LCM26 | Rheinwerft, Walsum | 1967 | stricken 2004 | |||
| Garnele | LCM27, 1991- L786, 1995- LCM27 | Rheinwerft, Walsum | 1967 | stricken 3.2000 | |||
| Languste | LCM28, 1991- L787, 1995- LCM28 | Rheinwerft, Walsum | 1967 | stricken 3.2000 |
|
Displacement standard, t |
116 |
|
Displacement full, t |
168 |
|
Length, m |
23.6 |
|
Breadth, m |
6.40 |
|
Draught, m |
1.46 |
|
No of shafts |
2 |
|
Machinery |
2 MWM diesels |
|
Power, h. p. |
684 |
|
Max speed, kts |
10.6 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) |
1430(7) |
|
Armament |
none |
| Military load |
60 t of cargo or 50 troops |
| Electronic equipment | radar |
| Complement | 7 |
Project history: Design was based on US LCM(8).
Modernizations: None.
Naval service: No significant events.

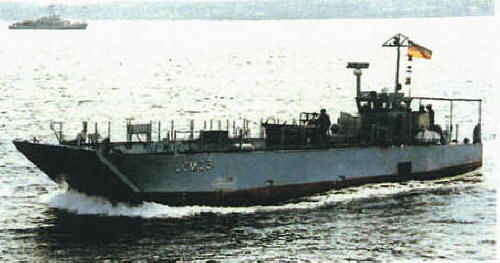

Krabbe 2003
