Barbe 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Flunder | L760 | Howaldtwerke, Hamburg | 6.1.1966 | 22.2.1966 | stricken 5.2001 | ||
| Karpfen | L761 | Howaldtwerke, Hamburg | 5.1.1966 | 2.2.1966 | stricken 1.1992 | ||
| Lachs | L762 | Howaldtwerke, Hamburg | 17.2.1966 | 24.3.1966 | in service (2019) | ||
| Plötze | L763 | Howaldtwerke, Hamburg | 18.3.1966 | 24.3.1966 | stricken 9.2001 | ||
| Rochen | L764 | Howaldtwerke, Hamburg | 18.3.1966 | 26.4.1966 | stricken 2.1992, to Greece (Σέριφος [Serifos]) | ||
| Schlei | L765 | Howaldtwerke, Hamburg | 17.5.1966 | 26.7.1966 | stricken 2017 | ||
| Stör | L766 | Howaldtwerke, Hamburg | 18.5.1966 | 26.7.1966 | stricken 9.1992 | ||
| Tümmler | L767 | Howaldtwerke, Hamburg | 14.6.1966 | 26.6.1966 | stricken 9.1992 | ||
| Wels | L768 | Howaldtwerke, Hamburg | 15.6.1966 | 27.6.1966 | stricken 12.1992 | ||
| Zander | L769 | Howaldtwerke, Hamburg | 13.7.1966 | 26.8.1966 | stricken 2.2002 | ||
| Butt | L788 | Howaldtwerke, Hamburg | 28.3.1965 | 7.5.1965 | stricken 12.1992 | ||
| Brasse | L789 | Howaldtwerke, Hamburg | 28.3.1965 | 7.5.1965 | stricken 4.1992 | ||
| Barbe | L790 | Howaldtwerke, Hamburg | 26.11.1965 | 10.1.1966 | stricken 9.1991, to Greece ('Ιος [Ios]) | ||
| Delphin | L791 | Howaldtwerke, Hamburg | 25.11.1965 | 10.1.1966 | stricken 9.1991, to Greece (Φολέγανδρος [Folegandros]) | ||
| Dorsch | L792 | Howaldtwerke, Hamburg | 17.3.1966 | 24.6.1966 | stricken 9.1991, to Greece (Σίκινος [Sikinos]) | ||
| Felchen | L793 | Howaldtwerke, Hamburg | 19.4.1966 | 23.6.1966 | stricken 10.1991, to Greece | ||
| Forelle | L794 | Howaldtwerke, Hamburg | 20.4.1966 | 7.6.1966 | stricken 11.1991, to Greece (Ηρακλειά [Irakleia]) | ||
| Inger | L795 | Howaldtwerke, Hamburg | 14.7.1966 | 16.8.1966 | stricken 9.1991, to Greece | ||
| Makrele | L796 | Howaldtwerke, Hamburg | 22.8.1966 | 16.9.1966 | stricken 11.1991, to Greece | ||
| Muräne | L797 | Howaldtwerke, Hamburg | 23.8.1966 | 16.9.1966 | stricken 2.1992, to Greece | ||
| Renke | L798 | Howaldtwerke, Hamburg | 22.9.1966 | 26.10.1966 | stricken 10.1988, to Greece (Νάξος [Naxos]) | ||
| Salm | L799 | Howaldtwerke, Hamburg | 23.9.1966 | 26.10.1966 | to Greece 11.1989 (Πάρος [Paros]) |
|
Displacement standard, t |
166 |
|
Displacement full, t |
403 |
|
Length, m |
36.7 pp 40.0 oa |
|
Breadth, m |
8.80 |
|
Draught, m |
1.60 normal 2.10 max |
|
No of shafts |
2 |
|
Machinery |
2 MWM TRHS518 diesels |
|
Power, h. p. |
1200 |
|
Max speed, kts |
11 |
|
Fuel, t |
diesel oil 40 |
| Endurance, nm(kts) |
1200(11) |
|
Armament |
2 x 1 - 20/70 Mk 10 |
| Military load |
cargo: 237 t max, 142 t normal (3 tanks) |
| Electronic equipment | Kelvin Hughes 14/9 radar |
| Complement | 17 |
Project history: These multi-purpose landing craft ot the type MZL 63, being an improved version of the US LCU1640 class, were ordered in 1964 and belong to the Type 520. Shortage of crews and changing concepts meant that most of them were transferred to the reserve immediately after delivery, laid up and cocooned. With the exception of Renke and SaJm all were finally commissioned in 1973.
All were designed to carry minerails for the transport and laying of mines. Stem and stern were designed in such a manner that the boats could form a chain, so as to produce a massive floating bridge.
Modernizations: 1970s, all: - 2 x 1 - 20/70; + 2 x 1 - 20/70 S-20; bridge was enclosed
Naval service: From 5 August 1974 W 9 September 1992, Inger served as training boat for the Seamen Training Group.

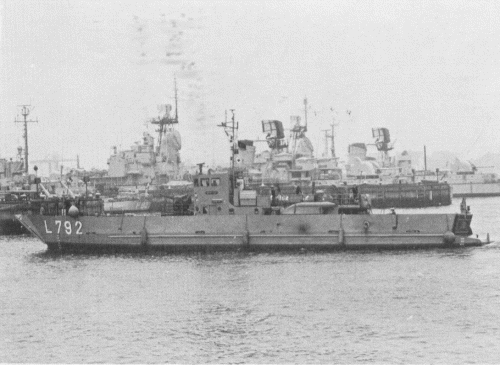

Dorsch 1979

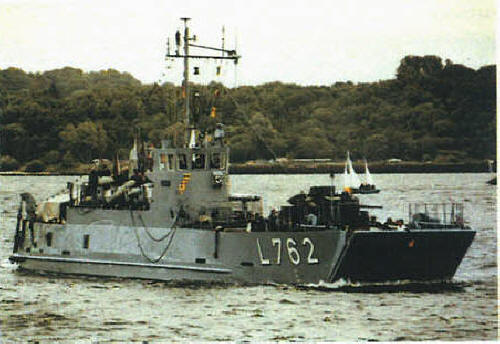

Lachs 2003
