Ch4 1940
Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
UJ6077 (ex-Ch4) | A C de Bretagne, Nantes, France | 1933 | 1934 | 1934 // 1944 | sunk 5.7.1944 | ||
UJ6085 (ex-Ch1) | A C de Bretagne, Nantes, France | 1932 | 1933 | 1934 // 4.1944 | sunk 6.8.1944 |
Displacement standard, t |
148 |
Displacement full, t |
180 |
Length, m |
48.1 |
Breadth, m |
5.50 |
Draught, m |
1.90 |
No of shafts |
2 |
Machinery |
UJ6077: 2 Sulzer diesels UJ6085: 2 MAN diesels |
Power, h. p. |
UJ6077: 2695 UJ6085: 2400 |
Max speed, kts |
UJ6077: 23.6 UJ6085: 20 |
Fuel, t |
diesel oil |
Armament |
1 x 1 - 75/50 M1927, 2 x 1 - 13/76, 4 DCT, 1 DCR |
Electronic equipment | hudrophone |
Complement |
33 |
Project history: ex-French submarine chasers, scuttled by own crews in Toulon in November 1942, salvaged in January, 1944 and repaired by Germans.
Modernizations: None.
Naval service: UJ6085 was sunk by Allied aircraft 6.8.1944 at Toulon. UJ6077 was sunk by Allied destroyer and aircraft 17.8.1944 off Cape Croisette.

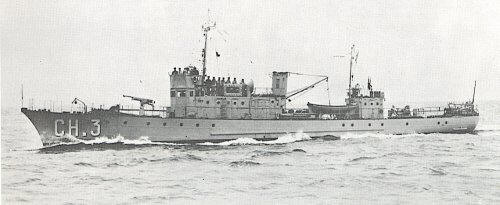

CH3
