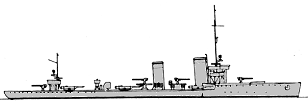

very similar V170
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| H186 | 632 | Howaldtswerke, Kiel | 1918 | --- | --- | sold incomplete 11.1919 | |
| H187 | 633 | Howaldtswerke, Kiel | 1918 | --- | --- | sold incomplete 11.1919 |
|
Displacement normal, t |
1268 |
|
Displacement full, t |
1553 |
|
Length, m |
92.5 oa 91.0 wl |
|
Breadth, m |
9.10 |
|
Draught, m |
3.70 |
|
No of shafts |
2 |
|
Machinery |
2 sets Germania geared steam turbines, 3 Marine boilers |
|
Power, h. p. |
38000 |
|
Max speed, kts |
35 |
|
Fuel, t |
oil 345 |
|
Endurance, nm(kts) |
2000(20) |
|
Armament |
4 x 1 - 105/42 Utof L/45 C/16, 2 x 2 - 500 TT, 2 x 1 - 500 TT (8), 40 mines |
|
Complement |
117 |
Project history: Large destroyers of the 1917 design type. They were the first German destroyers to have geared turbines. The boats were in the first stages of construction when the war ended; the orders were cancelled. H188-202 were cancelled before were laid down.
© Ivan Gogin, 2014
