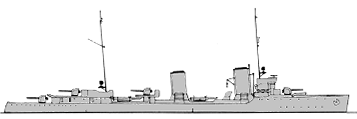

nearly sister-ship V116 1918
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| B122 | 290 | Blohm & Voss, Hamburg | 1916 | 16.10.1917 | --- | sold incomplete 11.1919 | |
| B123 | 291 | Blohm & Voss, Hamburg | 1916 | 26.10.1918 | --- | sold incomplete 11.1919 | |
| B124 | 292 | Blohm & Voss, Hamburg | 1916 | 6.6.1919 | --- | sold incomplete 11.1919 |
|
Displacement normal, t |
2040 |
|
Displacement full, t |
2354 |
|
Length, m |
108.8 oa 107.5 wl |
|
Breadth, m |
10.3 |
|
Draught, m |
4.11 |
|
No of shafts |
2 |
|
Machinery |
2 Marine steam turbines, 4 Marine boilers |
|
Power, h. p. |
45000 |
|
Max speed, kts |
34.5 |
|
Fuel, t |
oil 716 |
|
Endurance, nm(kts) |
2500(20) |
|
Armament |
4 x 1 - 149/42 TK L/45 C/16, 2 x 2 - 600 TT (8), 40 mines |
|
Complement |
176 - 188 |
Project history: These large destroyers were virtually sister-ships of the S113 group, and were in the 40-65% completion level at the end of war.
© Ivan Gogin, 2014
