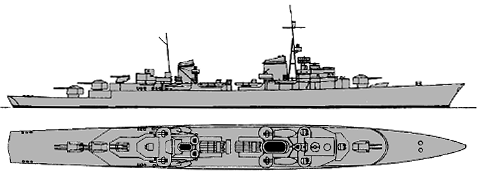

SP1
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| SP1 (ex-Z40) | Germaniawerft, Kiel | 1941 | --- | --- | cancelled mid-1942 |
|
Displacement standard, t |
5037 |
|
Displacement full, t |
5900 |
|
Length, m |
145.0 wl 152.2 oa |
|
Breadth, m |
14.6 |
|
Draught, m |
4.60 |
|
No of shafts |
3 |
|
Machinery |
CODAS: 2 sets Wagner geared stem turbines, 4 Wagner boilers (2 shafts) + 4 2-stroke 6-cyl double action MAN diesels (1 shaft) |
|
Power, h. p. |
77500 + 14500 = 92000 |
|
Max speed, kts |
35.5 |
|
Fuel, t |
oil + diesel oil = 820 |
| Endurance, nm(kts) | 8000(17) |
|
Armour, mm |
belt: 15, deck: (12 - 10) + 15, turrets: 30 - 20, bridges: 15 - 10, anti-torpedo bulkhead: 15 - 12 |
|
Armament |
3 x 2 - 149/46 Tbts KC/36T, 1 x 2 - 88/72 SKC/32, 4 x 2 - 37/80 SK C/30, 3 x 4 - 20/65 C/38, 2 x 5 - 533 TT, 50 mines |
| Electronic equipment | FuMO 21 radar |
|
Complement |
520 |
Project history: Order on first scout cruisers was given out 17.2.1941 instead of cancelled destroyers Z40-42 of 1936A(Mob) type. However these ships were still named Z40-42 till December, 1941, when they were renamed as SP1-3 (Spähkreuzers or scout cruisers) in parallel with old names (Z40-42)... Rate of building was lowered after British air raid on Kiel in spring 1941, and really only SP1 was laid down. Her building was suspended in mid-1942 in hull was broken up on the stocks next year. Ordered for Germaniawerft SP2 and 3 were never really laid down but preparation works were conducted. Planned SP4-6 were never ordered, only orders on main turbines were placed.
Ship protection: Light armour protected local areas of ship. There was no full belt, only magazines had 15-12mm box protection. 10mm main deck had 12mm slopes, upper deck had 15mm plating. Underwater protection consisted of 15-12mm longitudinal bulkhead. Turrets had 30mm faces and 20mm sides, rears and roofs. Fore and aft bridges had 10mm sides and 15mm roofs.
