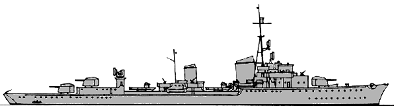

Z46
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Z46 | 1071 | Deschimag, Bremen | 1943 | --- | --- | BU incomplete 1945 | |
| Z47 | 1072 | Deschimag, Bremen | 1943 | --- | --- | BU incomplete 1945 |
|
Displacement standard, t |
3071 |
|
Displacement full, t |
3683 |
|
Length, m |
121.5 wl 126.2 oa |
|
Breadth, m |
12.2 |
|
Draught, m |
3.88 |
|
No of shafts |
2 |
|
Machinery |
2 sets Deschimag geared steam turbines, 6 Wagner boilers |
|
Power, h. p. |
70000 |
|
Max speed, kts |
37.5 |
|
Fuel, t |
oil 822 |
| Endurance, nm(kts) | 2500(19) |
|
Armament |
3 x 2 - 128/42 KM41, 3 x 2 - 37/69 Flak M/42, 3 x 2 - 20/65 C/38, 2 x 4 - 533 TT, 4 DCT (30), 60 mines |
| Electronic equipment | FuMO 32, FuMO 63K, FuMO 231 radars, S-Gerät sonar, GHG hydrophone, FuMB 3 Bali, FuMB 6 Palau ECM suites |
|
Complement |
335 |
Project history: New feature of these destroyers were new very successful dual-purpose 128mm guns in twin turrets. Owing to bomb damages and shortage of materials building proceeded very slowly and suspended in 1944.
