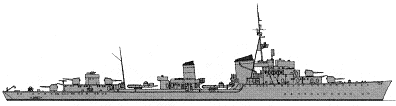

Z36 1944
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Z35 | 1005 | Deschimag, Bremen | 6/1941 | 20.10.1942 | 9/1943 | sunk 12.12.1944 | |
| Z36 | 1006 | Deschimag, Bremen | 9/1941 | 15.5.1943 | 2/1944 | sunk 12.12.1944 | |
| Z43 | 1029 | Deschimag, Bremen | 5/1942 | 15.9.1943 | 5/1944 | damaged 10.4.1945, scuttled 3.5.1945 | |
| Z44 | 1030 | Deschimag, Bremen | 8/1942 | 20.1.1944 | --- | sunk incomplete 29.7.1944 | |
| Z45 | 1031 | Deschimag, Bremen | 9/1943 | 15.4.1944 | --- | scuttled incomplete 20.7.1946 |
|
Displacement standard, t |
2519 |
|
Displacement full, t |
3542 |
|
Length, m |
121.9 wl 127.0 oa |
|
Breadth, m |
12.0 |
|
Draught, m |
3.54 |
|
No of shafts |
2 |
|
Machinery |
2 sets Deschimag geared steam turbines, 6 Wagner boilers |
|
Power, h. p. |
70000 |
|
Max speed, kts |
36 |
|
Fuel, t |
Z35, 36: oil 835 Z43-45: oil 825 |
|
Endurance, nm(kts) |
Z35, 36: 2600(19) Z43-45: 2950(19) |
|
Armament |
Z35, 36: 5 x 1 - 128/42 SK C/34, 2 x 2 - 37/69 FlaK M/42, 3 x 4 - 20/65 C/38, 2 x 1 - 20/65 C/38, 2 x 4 - 533 TT, 4 DCT (30), 60 mines Z43: 5 x 1 - 128/42 SK C/34, 2 x 2 - 37/69 FlaK M/42, 3 x 4 - 20/65 C/38, 2 x 2 - 20/65 C/38, 2 x 4 - 533 TT, 4 DCT (30), 60 mines |
| Electronic equipment | FuMO 24 radar, S-Gerät sonar, GHG hydrophone, FuMB 3 Bali, FuMB 4 Sumatra ECM suites |
|
Complement |
335 |
Project history: Negative responses about destroyers with 150mm artillery together with necessity of fitting of stronger antiaircraft armament and electronic equipment have served as reason of return to 127mm guns on type 1936B(Mob). Antiaircraft artillery has been strengthened at the expense of fitting of 2 quadruple 20mm MGs on bridge wings and replacements of 37mm/83 semi-automatic guns by more quick-firing 37mm/69. In remaining these destroyers were identical to type 1936À (Mob), differing in only dropped temperature of a steam (426°Ñ instead of 460°Ñ).
Modernizations: None.
Naval service: Z35 and Z36 were lost 12.12.1944 on mines in a mouth of Gulf of Finland. Z43 was damaged 10.4.1945 by a ground mine in the Danziger Bight, 3.5.1945 she was scuttled in Geltinger Bay. Z44 was sunk 29.7.1944 by Allied aircraft in outfitting basin in Bremen. Incomplete Z45 was scuttled by Allies in Skagerrack 20.7.1946.

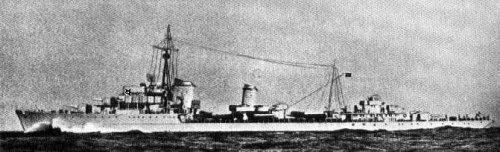

Z43
