Greif 1939
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Greif | BS21 | 791 | Oderwerke, Stettin | 1936 | 1.8.1937 | surrendered 5.1945, to USA 12.1945, to France 2.1948 (Marcel le Bihan) |
|
Displacement standard, t |
890 |
|
Displacement full, t |
|
|
Length, m |
72.0 |
|
Breadth, m |
10.6 |
|
Draught, m |
2.65 |
|
No of shafts |
2 Voith-Schneider propellers |
|
Machinery |
2 MAN diesels |
|
Power, h. p. |
4400 |
|
Max speed, kts |
16 |
|
Fuel, t |
diesel oil 40 |
| Endurance, nm(kts) | 2400(15) |
|
Armament |
3 x 1 - 7.9/79, 3 seaplanes (He 60, Do 18, He 114) |
|
Complement |
63 |
Project history: Depot ship for maintenance and repair of seaplanes, was arranged by deck for three seaplanes and 10t gantry.
Modernizations: 1939: - 3 x 1 - 7.9/79; + 1 x 1 - 20/65 C/38.
Naval service: Greif was transferred on reparations to France as Marcel Le Bihan.

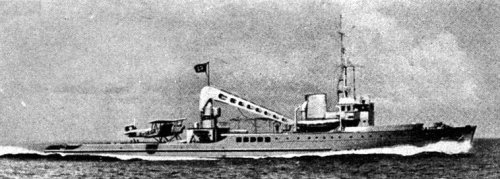

Greif
