Jagd 1890
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Wacht | 85 | Weser, Bremen | 1886 | 27.8.1887 | 9.8.1888 | collision 4.9.1901 | |
| Jagd | 86 | Weser, Bremen | 1887 | 7.7.1888 | 25.6.1889 | harbour vessel 5.1904 |
|
Displacement normal, t |
1246 |
|
Displacement full, t |
1499 |
|
Length, m |
85.5 oa 84.0 wl |
|
Breadth, m |
9.66 |
|
Draught, m |
3.74 mean 4.67 deep load |
|
No of shafts |
2 |
|
Machinery |
2 DTE, 4 locomotive boilers |
|
Power, h. p. |
4000 |
|
Max speed, kts |
19 |
|
Fuel, t |
coal 230 |
|
Endurance, nm(kts) |
2860(10) |
| Armour, mm | compound; deck: 20 with 40mm slopes, glacis: 75, CT: 25 |
|
Armament |
3 x 1 - 105/32 RK L/35 C/86, 3 - 350 TT (1 bow, 2 beam) |
|
Complement |
141 |
Project history: These single-funnelled vessels were poor seaboats, and had poor manoeuvrability. However, with their TTs and guns they were a better answer to the problem of producing a small fighting vessel for the North Sea or Baltic than any of their contemporaries. Shortly after completion they were rearmed with 4-88mm guns.
Ship protection: They had a compound iron-steel armoured deck (flat amidships consisted of 10mm iron on 10mm steel, slopes had 20mm iron and 20mm steel layers). Engine was protected by 75mm glacis on 150mm wood backing. CT had 25mm sides and 10mm roof.
Modernizations: 1891, both: - 3 x 1 - 105/32; + 4 x 1 - 88/27 SK L/30 C/89
Naval service: Wacht was lost 4.9.1901 in the Baltic in a collision with the battleship Sachsen. Jagd was broken up in 1920.

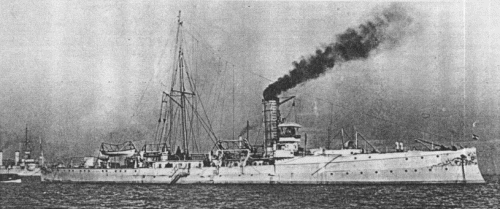

Wacht 1890
© Ivan Gogin, 2014
