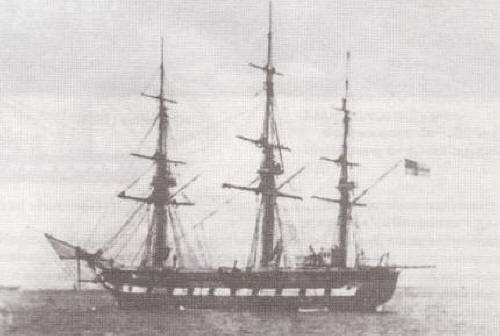

Nixe 1890
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Nixe | Danzig KW | 1883 | 23.7.1885 | 1.4.1886 | repair ship 1900 |
|
Displacement normal, t |
1781 |
|
Displacement full, t |
1982 |
|
Length, m |
63.3 oa 54.4 wl |
|
Breadth, m |
13.2 |
|
Draught, m |
5.52 mean 6.36 deep load |
|
No of shafts |
1 (hoisting screw) |
|
Machinery |
1 HC, 2 cylindrical boilers |
|
Power, h. p. |
700 |
|
Max speed, kts |
9 |
|
Fuel, t |
coal 125 |
|
Endurance, nm(kts) |
1120(10) |
|
Armament |
8 x 1 - 125/21 RK L/23 C/78 |
|
Complement |
358 |
Project history: Though a hopeless anachronism as a fighting ship the Nixe, with her full rig and wood and copper-sheathed bottom was useful as a school ship, though she was a bad seaboat and awkward under sail.
Modernizations: 1890s: - 1 x 1 - 125/21
1890s: - 1 x 1 - 125/21; + 2 x 1 - 88/27 SK L/30 C/89, 4 x 5 - 37/27 RV L/30
Naval service: In 1900 she was relegated to being a workshop ship, and from 1901 to 1906 she was used as an office at Kiel. She was broken up in 1916.
Nixe 1887
