Kreta 1943
Togo 1943
|
Name |
Launched // Comm. |
Builder |
Tonnage, BRT (disp., t) |
Dimensions, m (length pp) |
Speed, kts |
Engine, Power hp |
Armament |
Fate |
| Odysseus (ex-Flora 7, ex-Pierre Claude, ex-Asta) | 1934 // --- | Burmeister & Wain, Copenhagen , Denmark | 1787 (4524) | 89.7x13.0x4.7 | 13.5 | diesel, 2250 | 4 x 1 - 88/42, 36 - 20, FuMo 213, FuMo 303 radars | conversion cancelled 1.1943 |
| Kreta (ex-Ile de Beauté) | 1930 // 8.1943 | Deschimag, Bremen | 2600 (3900) | 102.0x13.2x5.2 | 20.1 | 2 geared steam turbines, 4 boilers, 6000 | 2 x 1 - 105/42, 2 x 1 - 75/32, 28 - 20, FuMo213, FuMo 303 radars | sunk 21.9.1943 |
| Togo (ex-Coronel, ex-Togo) | 1938 // 10.1943 | Bremer Vulkan | 5042 (12700) | 134.0x17.9x7.9 | 16 | diesel, 5100 | 3 x 1 - 105/42, 8 - 37, 19 - 20, FuMo 215, FuMo 303 radars | surrendered 5.1945, to Norway 3.1946 |
Project history: Night fighter direction ships. Odysseus and Kreta were equipped with Freya AN (FuMo303) and Würzburg D (FuMo213) radars. Togo had Freya AN (FuMo303), Würzburg Riese (FuMo215) radars and 2 Y-Lines.
Modernizations: None.
Naval service: Kreta was sunk by British submarine Unseen off Capreira.

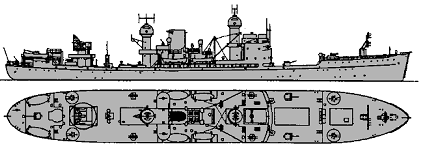

Togo
