BOARD GUARD / COAST GUARD (WEST GERMANY / GERMANY)

NON-NAVAL FORCES

MANNHEIM 59 river landing craft (1959-1960)

Name No Yard No Builder Laid down Launched Comp Fate
i           1959-1960 to Tonga 1989
ii           1959-1960 stricken 8.1991
iii           1959-1960 stricken 8.1991
iv           1959-1960 stricken 8.1991
v           1959-1960 stricken 8.1991
vi           1959-1960 stricken 8.1991
vii           1959-1960 stricken 8.1991
viii           1959-1960 stricken 8.1991
ix           1959-1960 stricken 8.1991
x           1959-1960 stricken late 2000s
xi           1959-1960 stricken late 2000s
xii           1959-1960 stricken late 2000s
xiii           1959-1960 stricken late 2000s
xiv           1959-1960 stricken late 2000s
xv           1959-1960 stricken late 2000s
xvi           1959-1960 stricken late 2000s
xvii           1959-1960 stricken late 2000s
xviii           1959-1960 stricken late 2000s
xix           1959-1960 stricken late 2000s
xx           1959-1960 stricken late 2000s
xxi           1959-1960 stricken late 2000s
xxii           1959-1960 stricken late 2000s
xxiii           1959-1960 stricken late 2000s



Displacement standard, t

89

Displacement full, t

200

Length, m

27.4

Breadth, m

7.20

Draught, m

1.20

No of shafts

2

Machinery

2 MWM RHS518A diesels

Power, h. p.

432

Max speed, kts

9

Fuel, t

diesel oil

Endurance, nm(kts)

Armament

4 x 1 - 7.6/90

Military load 90 t cargo

Electronic equipment

radar

Complement

9

Project history: Army. Have a bow ramp and shallow tank deck.

Modernizations: none.

Naval service: No significant events.

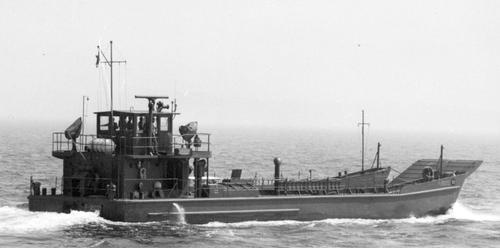

F-85032 1997
