Bredstedt 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Bredstedt | BG21, 7.2005- BP21 | Elsflether Werft | 3.3.1988 | 18.12.1988 | 24.5.1989 | in service (2019) |
|
Displacement standard, t |
|
|
Displacement full, t |
673 |
|
Length, m |
57.3 pp 65.4 oa |
|
Breadth, m |
9.20 |
|
Draught, m |
3.20 |
|
No of shafts |
1 |
|
Machinery |
1 MTU 29V1163 TB93 diesel / 2 diesel-generators, 1 electric motor |
|
Power, h. p. |
10880 / 1500 |
|
Max speed, kts |
25 / 12 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 7000(10) |
|
Armament |
1 x 1 - 40/70 Bofors 315, helicopter deck |
|
Electronic equipment |
2x Decca 2690 radars |
|
Complement |
18 |
Project history: Border Guard (since 2005 Border Police). 673 grt. Helicopter platform aft. Has a stern ramp-launched Avon Searaider inspection/rescue launch, and a second RIB is carried to port amidships. Two firefighting water monitors are fitted.
Modernizations: 1996: - 1 x 1 - 40/70
Naval service: No significant events.

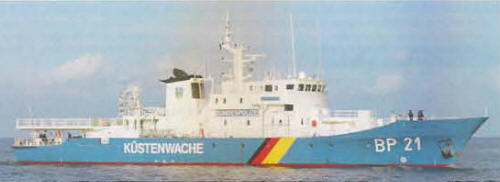

Bredstedt 2008
