Dachs 1965
Zobel 1975
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Zobel | P6092 | Lürssen, Vegesack | 28.1.1961 | 12/1961 | stricken 9.1982 | ||
| Wiesel | P6093 | Lürssen, Vegesack | 14.3.1961 | 6/1962 | stricken 3.1984 | ||
| Dachs | P6094 | Lürssen, Vegesack | 10.6.1961 | 9/1962 | stricken 12.1983 | ||
| Hermelin | P6095 | Kröger-Werft, Schacht-Audorf | 5.8.1961 | 11/1962 | stricken 1.1983 | ||
| Nerz | P6096 | Lürssen, Vegesack | 5.9.1961 | 1/1963 | hulk 7.1982 | ||
| Puma | P6097 | Kröger-Werft, Schacht-Audorf | 26.10.1961 | 12/1962 | stricken 12.1981 | ||
| Gepard | P6098 | Lürssen, Vegesack | 14.4.1962 | 4/1963 | stricken 11.1982 | ||
| Hyäne | P6099 | Kröger-Werft, Schacht-Audorf | 31.3.1962 | 5/1963 | stricken 6.1984 | ||
| Frettchen | P6100 | Lürssen, Vegesack | 20.11.1962 | 6/1963 | stricken 8.1983 | ||
| Ozelot | P6101 | Lürssen, Vegesack | 4.2.1963 | 10/1963 | stricken 1.1984 |
|
Displacement standard, t |
173 |
|
Displacement full, t |
190 |
|
Length, m |
39.8 wl 42.6 oa |
|
Breadth, m |
7.10 |
|
Draught, m |
2.30 |
|
No of shafts |
4 |
|
Machinery |
4 Mercedes-Benz diesels |
|
Power, h. p. |
14400 |
|
Max speed, kts |
43 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1000(32) |
|
Armament |
2 x 1 - 40/70 Bofors 350, 4 - 533 TT or (2 - 533 TT, mines) |
|
Electronic equipment |
Decca 1226 radar |
|
Complement |
39 |
Project history: The Lürssen-designed 'Schnellboot 60', now Type 142, was a modified version of the Type 140/141. They differed from the foregoing classes in having additional superstructure aft of the bridge, which was tested earlier in Geier, a more streamlined bridge and masts of a different shape. A further ten projected boats were not built.
Modernizations: 1971, Wiesel, Dachs, Hermelin, Puma, Frettchen, Ozelot; 1972, Zobel, Nerz, Gepard, Hyäne: - 4 - 533 TT, Decca 1226 radar; + 2 - 533 TT (for Seal wire-guided torpedoes), Kelvin Hughes 14/9, 2x M20 radars (213/219t, 38.5kts max)
Naval service: After service under German flag some boats were transferred to Turkey but no one was commissioned by Turkish navy.

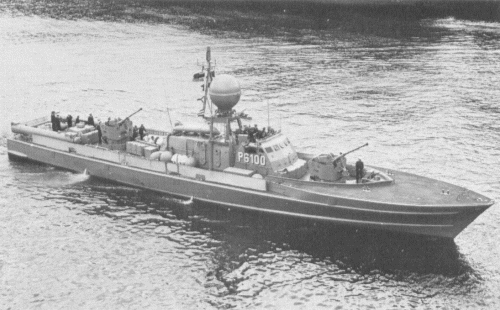

Frettchen 1979
