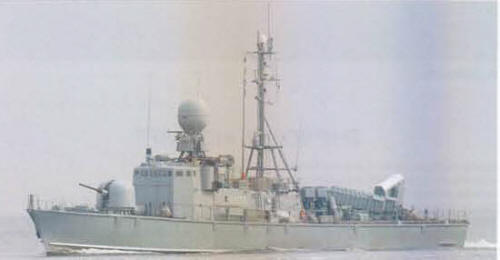

Wiesel 2000
Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
S71 Gepard | P6121 | Lürssen, Vegesack | 11.7.1979 | 25.9.1981 | 15.12.1982 | stricken 12.2014 | |
S72 Puma | P6122 | Lürssen, Vegesack | 17.12.1979 | 8.2.1982 | 15.2.1983 | stricken 12.2015 | |
S73 Hermelin | P6123 | Krögerwerft, Rendsburg | 1.2.1980 | 8.12.1981 | 28.4.1983 | stricken 11.2016 | |
S74 Nerz | P6124 | Lürssen, Vegesack | 24.7.1980 | 18.8.1982 | 14.7.1983 | stricken 3.2012 | |
S75 Zobel | P6125 | Krögerwerft, Rendsburg | 3.7.1980 | 30.6.1982 | 29.9.1983 | stricken 11.2016 | |
S76 Frettchen | P6126 | Lürssen, Vegesack | 22.12.1980 | 26.1.1983 | 16.12.1983 | stricken 11.2016 | |
S77 Dachs | P6127 | Krögerwerft, Rendsburg | 9.3.1980 | 14.12.1982 | 22.3.1984 | stricken 3.2012 | |
S78 Ozelot | P6128 | Lürssen, Vegesack | 25.6.1981 | 7.6.1983 | 22.5.1984 | stricken 12.2014 | |
S79 Wiesel | P6129 | Lürssen, Vegesack | 5.10.1980 | 8.8.1983 | 12.7.1984 | stricken 12.2015 | |
S80 Hyäne | P6130 | Lürssen, Vegesack | 7.12.1981 | 5.10.1983 | 13.11.1984 | stricken 11.2016 |
Displacement standard, t |
300 |
Displacement full, t |
391 |
Length, m |
54.4 pp 57.6 oa |
Breadth, m |
7.76 |
Draught, m |
2.56 hull 2.99 propellers |
No of shafts |
4 |
Machinery |
4 MTU 16V956 TB91 diesels |
Power, h. p. |
16000 |
Max speed, kts |
36 |
Fuel, t |
diesel oil 116 |
Endurance, nm(kts) |
2600(16) |
Armament |
2 x 2 MM38 Exocet SSM (4 MM38), 1 x 1 - 76/62 OTO-Melara Compact, mines |
Electronic equipment |
3RM20, WM27 radars, FL-1800S ECM suite, AGIS CCS |
Complement |
34 |
Project history: Officially designated Type 143A these boats replaced the Type 142. The general layout resembles Type 143, but has no stern TT and RAM instead of aft 76mm gun. The orders were placed 15 December 1978.
Modernizations: 1993-1996, all: - FL-1800S ECM suite, AGIS CCS; + 1 x 21 RAM SAM (21 RIM-116A), 2 x 1 - 12.7/90, MSP 500 e/o system, FL-1800S Stage II ECM suite, 2x Hot Dog/Silver Dog decoy RL, AGIS 2000 CCS
2007-2010, all: - 3RM20 radar; + Sperry E340 radar
Naval service: No significant events.
Hyäne 2008
