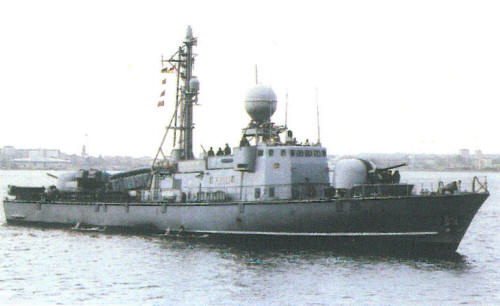

Albatros 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| S61, 1982- Albatros | P6111 | Lürssen, Vegesack | 4.5.1972 | 22.10.1973 | 1.11.1976 | stricken 3.2005, to Ghana (Naa Gbewaa) | |
| S62, 1982- Falke | P6112 | Lürssen, Vegesack | 25.10.1972 | 21.3.1974 | 13.4.1976 | stricken 12.2004 | |
| S63, 1982- Geier | P6113 | Lürssen, Vegesack | 14.2.1973 | 18.9.1974 | 2.6.1976 | stricken 9.2005, to Tunisia (حملك [Himilcon]) | |
| S64, 1982- Bussard | P6114 | Lürssen, Vegesack | 4.7.1973 | 14.4.1975 | 14.8.1976 | stricken 3.2005, to Ghana (Yaa Asantewaa) | |
| S65, 1982- Sperber | P6115 | Krögerwerft, Rendsburg | 18.1.1973 | 15.1.1974 | 27.9.1976 | stricken 6.2005, to Tunisia (حملكر [Hamilcar]) | |
| S66, 1982- Greif | P6116 | Lürssen, Vegesack | 12.12.1973 | 4.9.1975 | 25.11.1976 | stricken 6.2005, to Tunisia (حنون [Hannon]) | |
| S67, 1982- Kondor | P6117 | Krögerwerft, Rendsburg | 19.6.1973 | 6.3.1975 | 17.12.1976 | stricken 12.2004 | |
| S68, 1982- Seeadler | P6118 | Lürssen, Vegesack | 12.6.1974 | 17.11.1975 | 28.3.1977 | stricken 9.2005, to Tunisia (هانيبال [Hannibal]) | |
| S69, 1982- Habicht | P6119 | Krögerwerft, Rendsburg | 25.1.1974 | 5.6.1975 | 23.12.1977 | stricken 12.2005, to Tunisia (حاسدربل [Hasdrubal]) | |
| S70, 1982- Kormoran | P6120 | Lürssen, Vegesack | 26.11.1974 | 14.4.1976 | 29.7.1977 | stricken 12.2005, to Tunisia (جزك [Giscon]) |
|
Displacement standard, t |
300 |
|
Displacement full, t |
393 |
|
Length, m |
54.4 pp 57.6 oa |
|
Breadth, m |
7.76 |
|
Draught, m |
2.56 hull 2.82 propellers |
|
No of shafts |
4 |
|
Machinery |
4 MTU 16V956 TB91 diesels |
|
Power, h. p. |
16000 |
|
Max speed, kts |
36 |
|
Fuel, t |
diesel oil 116 |
|
Endurance, nm(kts) |
2600(16) |
|
Armament |
2 x 2 MM38 Exocet SSM (4 MM38), 2 x 1 - 76/62 OTO-Melara Compact, 2 - 533 TT (2 Seal) |
|
Electronic equipment |
3RM20, WM27 radars, AGIS CCS |
|
Complement |
40 |
Project history: The Type 143 were designed to replace the Type 141 (P 6068-6077). The design of the composite hulls is by Lürssen, åhe military requirements were defined in October 1966, the contract was signed 7 July 1972 and the orders placed 13 Jury 1972. The TT are aft-launching, and fire Seal wire-guided torpedoes.
Modernizations: 1988-1992, all: + DR2000 ECM suite
late 1990s, all: - DR2000 ECM suite, AGIS CCS; + OGR-713 e/o system, Cutlass, Scorpion ECM suites, Wolke, 2x Hot Dog/Silver Dog decoy RL, AGIS2000 CCS
Naval service: No significant events.

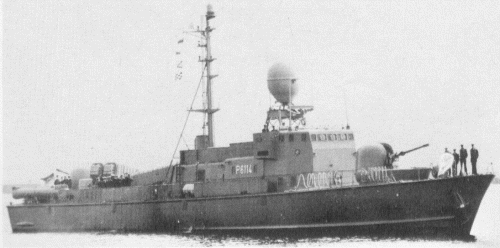

S64 1979
Geier 2003
