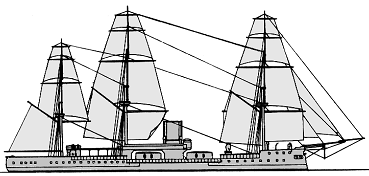

Preussen 1876

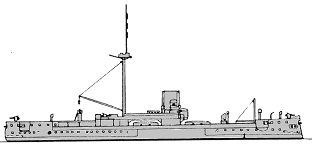

Preussen 1890
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Friedrich der Grosse | 1 | Kiel KW | 1869 | 20.9.1874 | 22.11.1877 | harbour ship 11.1896 | |
| Grosser Kurfürst | 2 | Wilhelmshaven KW | 1868 | 17.9.1875 | 6.5.1878 | collision 31.5.1878 | |
| Preussen (ex-Borussia) | 66 | Vilcan, Stettin | 1870 | 22.11.1873 | 4.7.1876 | harbour ship 11.1896 |
|
Displacement normal, t |
7596 |
|
Displacement full, t |
7718 |
|
Length, m |
94.5 wl 96.6 oa |
|
Breadth, m |
16.3 |
|
Draught, m |
7.18 |
|
No of shafts |
1 |
|
Machinery |
1 HSE, 6 rectangular boilers |
|
Power, h. p. |
5000 |
|
Max speed, kts |
14 |
|
Fuel, t |
coal 565 |
| Endurance, nm(kts) | 1690(10) |
|
Armour, mm |
steel; belt: 229 - 102, citadel: 203, turrets: 254, CT: 50 |
|
Armament |
4 x 1 - 263/20 RKL/22 C/76, 2 x 1 - 173/22 RKL/24.6 C/72 |
|
Complement |
500 |
Project history:
The original 1868 design for this class showed them as central battery
ships, and Grosser Kurfürst was laid down as such. However, the design
was reworked in the next year, with two turrets replacing the central casemate.
Grosser Kurfürst was altered on the stocks, which was one reason why she
was so long building. Another was that the Royal, later Imperial, Dockyards
which built her and Friedrich der Grosse were still being established. It
is not, perhaps, surprising that a longer established commercial yard should
begin last and finish first with their sister, even though all three yards were
new to the building of ironclads.
In this period of constant change it was most unusual for any
navy to build as many as three major warships to the same design.
Ship protection: Main steel belt had 260-234mm wooden back and consisted from upper 203mm belt and lower belt 229mm abreast citadel and 102mm fore and aft. Turrets had 254-203mm side protection on 260mm wooden backing and 25mm roofs. CT had 50mm sides and 30mm roof.
Modernizations: 1892, Preussen, Friedrich der Grosse: + (6 - 10) x 1 - 88/27 SKL/30 C/89, 2 x 5 - 37/27 RV L/30, 5 - 350 TT (2 bow, 2 beam, 1 stern)
Naval service: Unfortunately, the advantages the Germans should have gained from a group of ships with the same characteristics were tragically short lived, as an error in helm orders caused the Grosser Kurfürst to be rammed and sunk by the König Wilhelm, with heavy loss of life, on her maiden voyage 31.5.1878 in Dover Straight. Her two sisters served with the fleet until the 1890s. From 1896 both served as harbour ships, with Preussen, which had been heavily refitted in 1892, renamed Saturn in 1903 so that her original name could be used for a new battleship. Both ended their days as coal hulks for torpedo boats since 1906 (Friedrich der Grosse) - 1907 (Saturn).

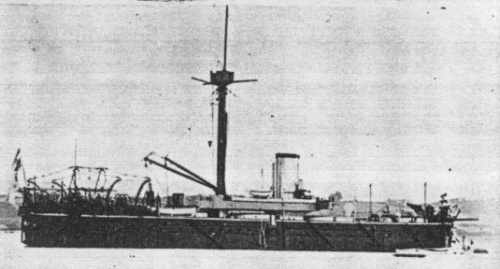

Preussen
© Ivan Gogin, 2014
