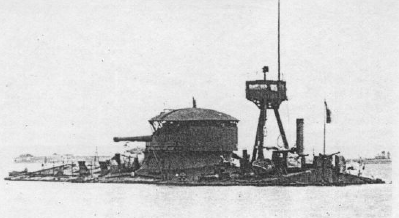

Biber 1944 with additional bow and stern
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Biber (ex-GM194, ex-Faa di Bruno) | Arsenale di Venezia, Italy | 30.1.1916 | 23.7.1917 // 9.9.1943 | surrendered 5.1945, BU |
|
Displacement standard, t |
|
|
Displacement full, t |
2854 |
|
Length, m |
55.6 (129.5 with additional ends) |
|
Breadth, m |
27.0 |
|
Draught, m |
2.24 |
|
No of shafts |
2 |
|
Machinery |
2 VTE |
|
Power, h. p. |
465 |
|
Max speed, kts |
3.3 |
|
Fuel, t |
coal |
|
Armour, mm |
belt: 2900 concrete cofferdam, deck: 40, barbette: 60, turret: 110 face |
|
Armament |
1 x 2 - 381/40 Mk A, 4 x 1 - 76/40 Ansaldo 1916, 2 x 1 - 40/39 Vickers-Terni 1915 |
|
Complement |
743 |
Project history: Ex-Italian monitor, rebuilt from floating crane pontoon in 1917, alid up in 1924 and re-rated in 1924 to floating battery. After capitulation of Italy she was captured by German troops and commissioned by Kriegsmarine as monitor. Additional ship ends increased ship length from 56 to 130m, also full ship was camouflaged, taken massive false superstructure in place of turret and false funnel instead of battle mast.
Ship protection: Hull was protected all around by 2.9m concrete layer.
Modernizations: None.
Naval service: Biber was surrendered in May, 1945 and broken up.
Faa di Bruno
