Names |
P1 Sea Dog |
|
Builders |
Fairey Marine, Cowes, UK: P1 |
|
Commissioned |
1976: P1 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
1994: P1 |
|
Displacement standard, t |
|
|
Displacement full, t |
17 |
|
Length, m |
14.8 |
|
Breadth, m |
4.76 |
|
Draught, m |
1.30 |
|
No of shafts |
2 |
|
Machinery |
2 General Motors 8V71TI diesels |
|
Power, h. p. |
850 |
|
Max speed, kts |
24 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 500(15) |
|
Armament |
1 x 1 - 20/70 Mk 4, 3 x 1 - 7.6/90 |
| Electronic equipment | radar |
|
Complement |
6 + 10 boarding party |
Project history: Lance class.
Modernizations: None.
Naval service: No significant events.

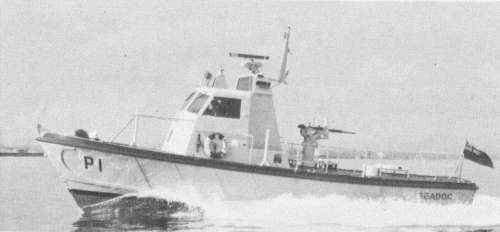

Sea Dog 1976
