Chamois 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|
Président El Hadj Omar Bongo |
L05 |
Grand Quevilly, Rouen, France |
16.4.1984 |
26.11.1984 |
stricken 2016 |
|
Displacement standard, t |
770 |
|
Displacement full, t |
1336 |
|
Length, m |
80.0 |
|
Breadth, m |
13.0 |
|
Draught, m |
2.40 |
|
No of shafts |
2 |
|
Machinery |
2 SACM 195V12CSHR diesels |
|
Power, h. p. |
3600 |
|
Max speed, kts |
16 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 4500(13) |
|
Armament |
2 x 1 - 40/60 Mk 7, 1 x 1 - 81/29 M29 mortar, 2 x 1 - 12.7/90, helicopter deck |
| Military load | 1 LCVP, 1 LCPS, 340 t cargo, 138 troops, 7 combat vehicles |
| Electronic equipment | DRBN-32 radar |
|
Complement |
47 |
Project history: French Champlain class.
Modernizations: 1997: bow doors were welded closed; - 2 x 1 - 40/60; + 1 x 1 - 40/70 Breda-Bofors 564, 2 x 1 - 20/90 F2
Naval service: No significant events.

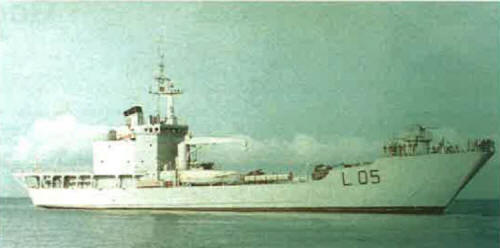

Président El Hadj Omar Bongo 1993
