| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|
Président El Hadj Omar Bongo, 1985- Général Nazaire Boulingui Kounba, 1985- Général Nazaire Boulingui |
P10 |
CN de l'Estérel, Cannes, France |
12.1.1978 |
7.8.1978 |
in service (2019) |
|
Displacement standard, t |
|
|
Displacement full, t |
160 |
|
Length, m |
42.0 |
|
Breadth, m |
7.70 |
|
Draught, m |
1.90 |
|
No of shafts |
3 |
|
Machinery |
3 MTU 20V672 TY90 diesels |
|
Power, h. p. |
9450 |
|
Max speed, kts |
38.5 |
|
Fuel, t |
diesel oil 28 |
| Endurance, nm(kts) | 1500(15) |
|
Armament |
2 x 2 SS-12M SSM (4 SS-12M), 1 x 1 - 40/70 Breda-Bofors 564, 1 x 1 - 20/90 GAM-B01 |
| Electronic equipment | Decca RM1226 radar |
|
Complement |
23 |
Project history: Triple-skinned mahogany-hulled boat.
Modernizations: 1985: diesels were replaced by 3 SACM AGO195 12CSNR diesels (5400hp, 32kts).
early 2000s: SS-12M SSMs became inoperable
Naval service: Stricken in 1999 but reactivated in 2000.

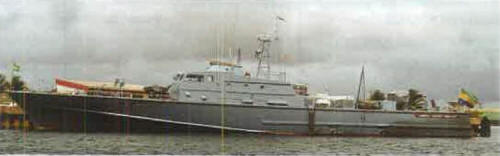

Général Nazaire Boulingui 2000
