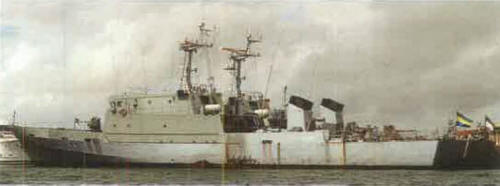

Général d'Armée Ba Oumar 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|
Général d'Armée Ba Oumar |
P07 |
CMN, Cherbourg, France |
2.7.1986 |
18.12.1987 |
6.8.1988 |
in service (2019) |
|
| Colonel Djoué Dabany | P08 |
CMN, Cherbourg, France |
5.1989 | 29.3.1990 | 14.9.1990 | in service (2019) | |
| Capitaine de Vaisseau Bivigou Nziengu (ex-Le Tapageuse) | P09 |
CMN, Cherbourg, France |
13.8.1985 | 16.2.1987 | 11.2.1988 // --- | transfer cancelled 2014 |
|
Displacement standard, t |
371 |
|
Displacement full, t |
446 |
|
Length, m |
50.0 pp 54.6 oa |
|
Breadth, m |
8.00 |
|
Draught, m |
2.54 max |
|
No of shafts |
2 |
|
Machinery |
2 SACM-Wärtsilä UD33 V16 M7 diesels |
|
Power, h. p. |
8000 |
|
Max speed, kts |
26 |
|
Fuel, t |
diesel oil 73 |
| Endurance, nm(kts) | 4400(14.5) |
|
Armament |
P07: 1 x 1 - 57/70 SAK-57 Mk 2, 1 x 1 - 20/90 GAM-B01 P08: 2 x 1 - 20/90 F2 |
| Electronic equipment | Decca 1226C radar |
|
Complement |
25 + 23 passengers |
Project history: French 'Super Patra' class. Transfer of the third craft, ex-French La Tapageuse, was cancelled in favor of order of new patrol ship.
Modernizations: None.
Naval service: No significant events.
Colonel Djoué Dabany 2000
© Ivan Gogin, 2019
