| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Z | Q036 | Arsenal de Rochefort | 28.3.1904 | 1905 | stricken 3.1910 |
|
Displacement standard, t |
|
|
Displacement normal, t |
202 / 222 |
|
Length, m |
41.3 |
|
Breadth, m |
3.00 |
|
Draught, m |
2.80 |
|
No of shafts |
1 |
|
Machinery |
1 diesel / 1 electric motor |
|
Power, h. p. |
190 / |
|
Max speed, kts |
9 / 7.1 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 500(5) / 45(4) |
|
Armament |
2 - 450 TT (bow) |
| Complement | 16 |
| Diving depth operational, m | 30 |
Project history: Single-hulled steel submarine, designed by Maugas. Improved Farfadet class; first French submarine with diesel engine. Diving time 4min 55 sec. Her estimated building cost was 779,300 francs (£31,172).
Modernizations: None.
Naval service: Disarmed from 1909.

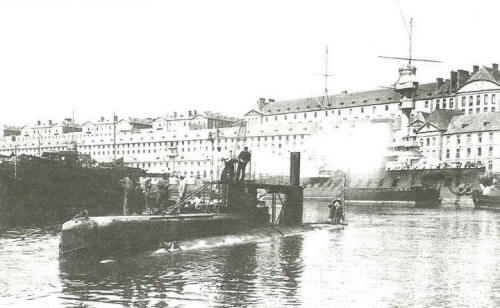

Z 1905
Many thanks to Wolfgang Stöhr for additional information on this page.
