FRENCH NAVY (FRANCE)

SUBMARINES

LE TRIOMPHANT nuclear ballistic missile submarines (1997 - 2010)

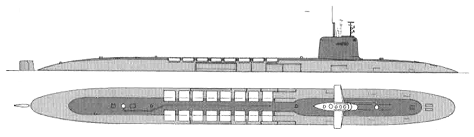

Le Triomphant 2010

Name No Yard No Builder Laid down Launched Comp Fate
Le Triomphant S616   DCN, Cherbourg 9.6.1989 26.3.1994 21.3.1997 in service (2019)
Le Téméraire S617   DCN, Cherbourg 18.12.1993 21.1.1998 23.12.1999 in service (2019)
Le Vigilant S618   DCN, Cherbourg 1997 19.9.2003 29.11.2004 in service (2019)
Le Terrible S619   DCN, Cherbourg 11/2002 21.3.2008 27.9.2010 in service (2019)



Displacement standard, t



Displacement normal, t

12640 / 14335

Length, m

138.0

Breadth, m

12.5 hull 17.0 over planes

Draught, m

10.7

No of shafts

1 pump-jet

Machinery

1 K15 nuclear reactor, 2 turbo-generators, 1 electric motor

Power, h. p.

41500

Max speed, kts

12 / 25

Fuel, t

nuclear

Endurance, nm(kts)

practically unlimited

Armament

S616-618: 16 M-45 SLBM (16 M-45), 4 - 533 TT (bow, 18, inc. SM39 Exocet SSM (4 SM39))

S619: 16 M-51 SLBM (16 M-51), 4 - 533 TT (bow, 18, inc. SM39 Exocet SSM (4 SM39))

Electronic equipment

S616-618: DRUA-33 radar, DMUX-80 sonar suite, DUUV-23, DUUX-5, DSUV-61B towed array sonars, ARUR-13 ECM suite, Nemesis torpedo decoy launchers, SEAO/OPSMER CCS

S619: DRUA-33 radar, UMS-3000 sonar suite, DUUG-7, DUUX-5, DSUV-61B towed array sonars, ARUR-13 ECM suite, Nemesis torpedo decoy launchers, SYCOBS CCS

Complement

111

Diving depth operational, m

400

Project history: This class replaced the first-generation SNLE of the Le Redoutable class. They have a superior hull-form and a reconfigured fin. The adoption of NLES 100 high-tensile steel gives them a 500m diving depth. Considerable attention has been paid to reducing noise emissions. The main propulsion machinery is raft-mounted, and the auxiliary machinery is suspended and isolated from the hull. There is a pump-jet. The 150MW K15 reactor is essentially the same model which powers the carrier Charles de Gaulle. It uses slightly enriched uranium, and must therefore be refuelled more frequently than US- and British-type PWRs which use highly enriched uranium. This helps to preserve French independence of foreign uranium enrichment facilities.

    The sensor outfit includes the new DMUX 80 multi-function sonar suite, comprising passive bow and flank arrays. The first three units entered service with the M-45 missile. S619 was commissioned with the advanced M-51 missile aboard, carrying 6 (10-12 if needed) TN-75 MIRVs.

Modernizations: 2012, Le Vigilant; 2014, Le Triomphant; 2018, Le Téméraire: - 16 M-45 SLBM, DMUX-80 sonar suite, SEAO/OPSMER CCS; + 16 M-51 SLBM (16 M-51), UMS-3000 sonar suite, SYCOBS CCS

Naval service: Le Triomphant was damaged 3.2.2009 in collision with British SSBN Vanguard and returned to service in October 2009.

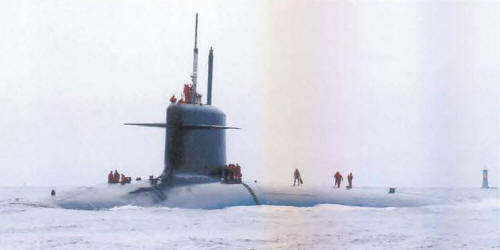

Le Vigilant 2008
