Sirène 1906
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Sirène | Q005 | Q3 | Arsenal de Cherbourg | 5.1900 | 4.5.1901 | 12.1901 | stricken 11.1919 |
| Triton | Q006 | Q4 | Arsenal de Cherbourg | 6.1900 | 13.7.1901 | 12.1901 | stricken 11.1919 |
| Espadon | Q013 | Q8 | Arsenal de Cherbourg | 1900 | 7.9.1901 | 6.1902 | stricken 11.1919 |
| Silure | Q014 | Q7 | Arsenal de Cherbourg | 1900 | 29.10.1901 | 6.1902 | stricken 11.1919 |
|
Displacement standard, t |
|
|
Displacement normal, t |
157 / 213 |
|
Length, m |
32.5 |
|
Breadth, m |
3.90 |
|
Draught, m |
2.50 |
|
No of shafts |
1 |
|
Machinery |
1 VTE, 1 boiler / 1 electric motor |
|
Power, h. p. |
250 / 100 |
|
Max speed, kts |
9.8 / 5.8 |
|
Fuel, t |
oil |
| Endurance, nm(kts) | 600(7) / 55(3.8) |
|
Armament |
4 - 450 TC |
| Complement | 13 |
| Diving depth operational, m | 30 |
Project history: Submersible boars of modified Narval type with double hull ordered on 20 May 1899 and 1 May 1900. Designed by Maxime Laubeuf. Initial cost was £24,700 each. They were built like torpedo-boats and submerged by the admission of water into the space between the skins. Machinery generally similar to Narval. These boats could dive in 6 minutes (Espadon) to 9 minutes (Triton).
Modernizations: None.
Naval service: No significant events.

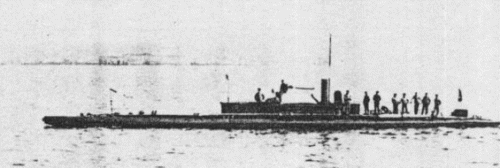

Triton 1902
Many thanks to Wolfgang Stöhr for additional information on this page.
