Pierre Chailley 1933
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Pierre Chailley | NN2 | Normand, Le Havre | 5.1917 | 19.12.1921 | 1922 | stricken 1936 |
|
Displacement standard, t |
|
|
Displacement normal, t |
884 / 1191 |
|
Length, m |
70.0 |
|
Breadth, m |
7.50 |
|
Draught, m |
4.00 |
|
No of shafts |
2 |
|
Machinery |
2 Sulzer diesels / 2 electric motors |
|
Power, h. p. |
1800 / 1400 |
|
Max speed, kts |
13.7 / 8.5 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 2800(11) / 80(5) |
|
Armament |
1 x 1 - 100/45 M1917, 4 - 450 TT (2 bow, 2 x 1, 4), 40 mines |
| Complement | 44 |
| Diving depth operational, m |
Project history: Built under 1917 programme. Double-hulled submarine of Normand-Fenaux type. Mines were stored in external tubes and were been laid by Normand-Fenaux system.
Modernizations: None.
Naval service: No significant events.

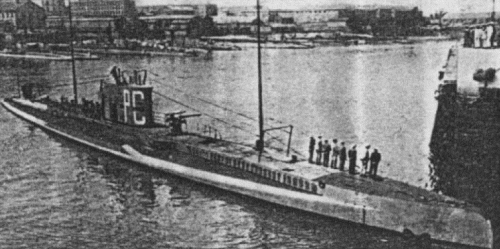

Pierre Chailley 1930
